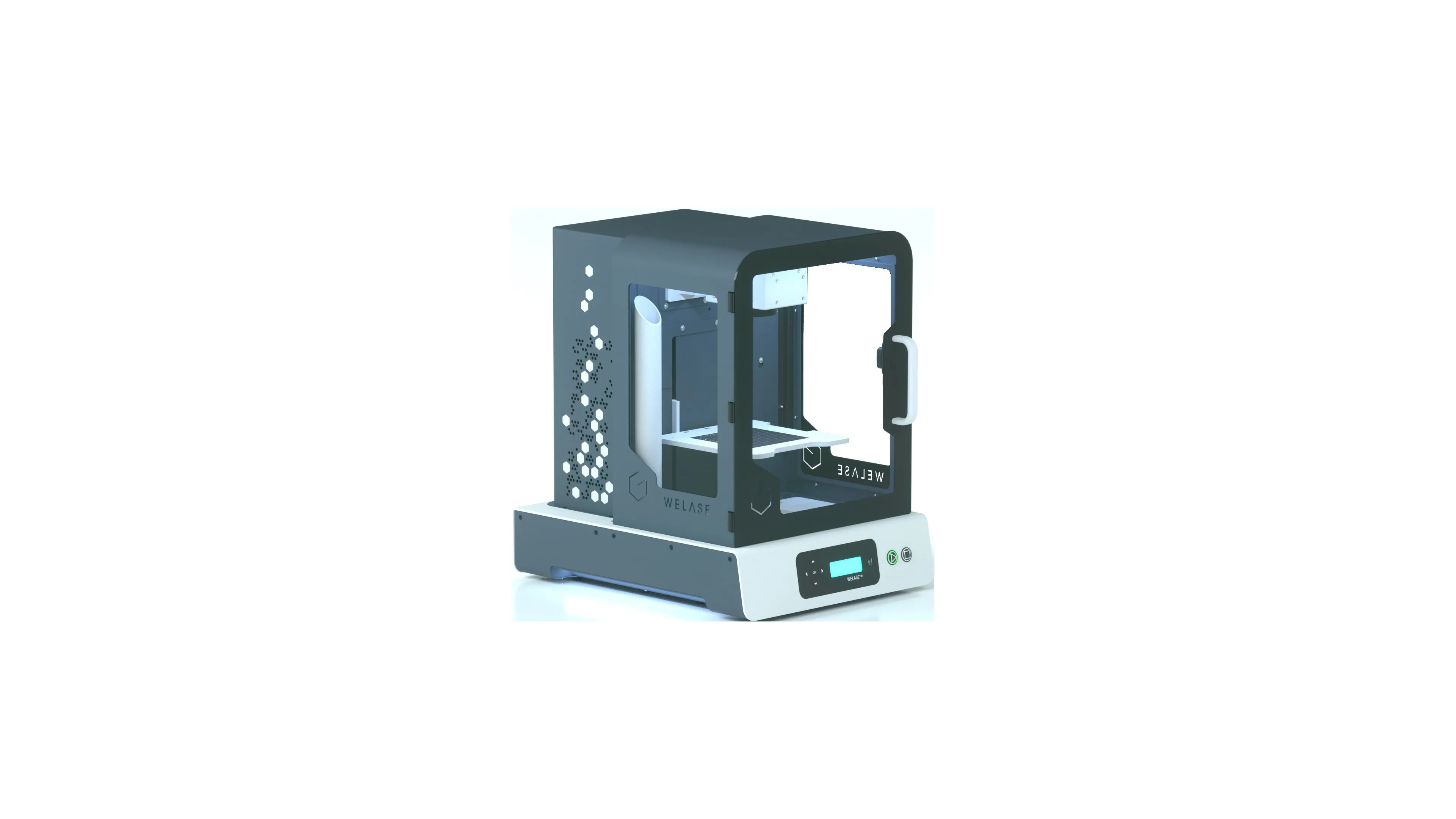

Welase CO2
The Welase CO2 is a compact galvo laser engraving station weighing 37 kg with a 110 x 110 mm marking area. Class 1 certified for maximum safety with a safety glass viewing window and auto shut-off. The CO2 variant uses a 10,600 nm wavelength, accommodating objects up to 180 mm height. Features a high-speed galvanometric marking head with automatic height adjustment. Engraves wood, glass, leather, paper, painted surfaces, and transparent materials for personalization, creative projects, and small batch production.
TECHNICAL SPECIFICATIONS
OVERVIEW
The Welase CO2 is a small laser engraver designed for all kinds of engravings on organic materials. High speed capability, suitable for unit to small batch production, with the highest safety standards.
The Welase CO2 is a compact, fully enclosed galvo laser marking station that brings industrial-grade marking capability to workshops, retail environments, and small production facilities. The Class 1 safety enclosure ensures completely safe operation without laser safety training, protective eyewear, or restricted access zones — making it ideal for environments where non-technical operators need to produce professional marks quickly and safely.
Despite its compact footprint, the Welase CO2 delivers high-speed marking powered by a CO2 Laser source with a 110 x 110 mm working area. The galvo scanning head moves the laser beam at speeds exceeding 7,000 mm/s, enabling rapid marking of text, logos, serial numbers, barcodes, and 2D codes on Organic materials (wood, glass, leather, paper), painted surfaces, plastics. The Welase CO2 is the ideal choice for businesses entering the laser marking market or expanding their existing capabilities with a reliable, low-maintenance solution.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
CO2 Laser Source
CO2 Laser technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
110 x 110 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Advanced Capabilities
High speed, Class 1 safety
MATERIAL COMPATIBILITY
Wood & Paper
Detailed engraving on wood, cardboard, and paper products for packaging and decorative applications.
Glass & Ceramics
Surface marking and frosting on glass, ceramic, and stone materials.
Organic Materials
Leather, fabric, rubber, and natural materials respond well to CO2 laser energy.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Education & Training
Safe, versatile equipment for university fablabs, technical schools, and vocational training centers teaching design and manufacturing.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Welase CO2 supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The Welase CO2 measures 450 x 560 x 610 mm and weighs 37 kg. The CO2 laser at 10,600 nm wavelength operates within a Class 1 certified enclosure with safety glass viewing window and auto shut-off if the door opens during operation. Maximum object height is 180 mm (the tallest among Welase variants) with maximum weight of 3 kg. The galvanometric marking head provides high-speed operation with automatic height adjustment. Preview mode ensures proper object positioning before marking. Compatible with GravoStyle and LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Welase CO2?
The Welase CO2 comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
CO2 laser tubes typically last 10,000-20,000 hours depending on usage patterns. Replacement tubes are available through SOFRAY EMS.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
