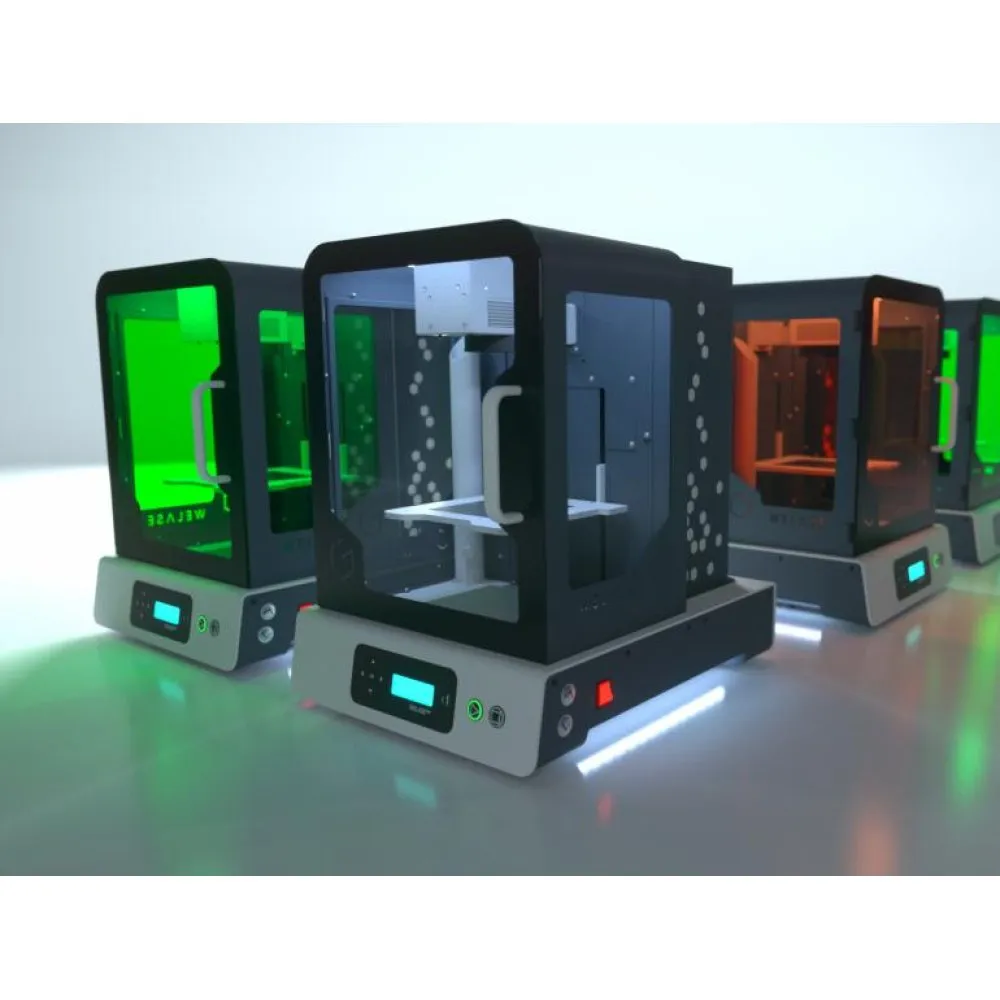

Welase Fiber Series
The Welase Fiber is a compact galvo laser marking station weighing 37 kg with a 110 x 110 mm marking area. Class 1 certified with a 20W fiber laser at 1064 nm wavelength. Objects up to 100 mm height and 3 kg. Features a high-speed galvanometric marking head with automatic height adjustment, safety glass viewing window, and auto shut-off. Marks all metals and plastics for identification, personalization, and production applications. Driven by GravoStyle or LaserTrace software.
TECHNICAL SPECIFICATIONS
OVERVIEW
The Welase Fiber is a small laser marking station designed for personalization and identification on metals and plastics. High speed capability with the highest safety standards, suitable for factories, workshops, and retail environments.
The Welase Fiber Series is a compact, fully enclosed galvo laser marking station that brings industrial-grade marking capability to workshops, retail environments, and small production facilities. The Class 1 safety enclosure ensures completely safe operation without laser safety training, protective eyewear, or restricted access zones — making it ideal for environments where non-technical operators need to produce professional marks quickly and safely.
Despite its compact footprint, the Welase Fiber Series delivers high-speed marking powered by a Fiber Laser source with a 110 x 110 mm working area. The galvo scanning head moves the laser beam at speeds exceeding 7,000 mm/s, enabling rapid marking of text, logos, serial numbers, barcodes, and 2D codes on Metals, plastics. The Welase Fiber Series is the ideal choice for businesses entering the laser marking market or expanding their existing capabilities with a reliable, low-maintenance solution.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Fiber Laser Source
Fiber Laser technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
110 x 110 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Advanced Capabilities
High speed, Class 1 safety
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Welase Fiber Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The Welase Fiber measures 450 x 560 x 610 mm and weighs 37 kg. The 20W fiber laser at 1064 nm wavelength marks all metals and plastics within a Class 1 certified enclosure. Maximum object height is 100 mm with maximum weight of 3 kg. The galvanometric marking head delivers high-speed marking with automatic height adjustment. Safety features include a glass viewing window and auto shut-off on door opening. Compatible with GravoStyle and LaserTrace software for both creative and industrial traceability applications.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Welase Fiber Series?
The Welase Fiber Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
