XF530 Series
The XF530 combines electromagnetic and pneumatic technologies for deep and permanent dot peen marking. Its 200 x 50 mm marking area delivers deep marks for lifecycle traceability on industrial parts. Logo, serial number, and 1D/2D codes follow parts through every step. Used across aerospace, automotive, defense, maritime, and railway industries. Driven by LASERTRACE software.
TECHNICAL SPECIFICATIONS
OVERVIEW
An integrable dot peen marking system designed for deep and permanent industrial identification. Combines electromagnetic and pneumatic technology for robust marking capabilities. Suitable for VIN and serial number marking on production lines.
The Gravotech XF530 Series uses Electromagnetic & Pneumatic technology to create permanent, tamper-proof marks directly on metal and plastic components. Unlike labels or ink markings that can fade, peel, or be removed, dot peen and scribing marks are physically deformed into the material surface — creating identification that lasts the entire lifetime of the part, even in the harshest industrial environments including extreme heat, chemical exposure, outdoor weathering, and heavy mechanical abrasion.
With a 200 x 50 mm marking window, the XF530 Series produces text, serial numbers, logos, DataMatrix codes, QR codes, and 1D barcodes that meet international traceability standards. The system is designed for direct part marking (DPM) applications where every component must carry permanent identification throughout its lifecycle — from raw material through manufacturing, assembly, service, and eventual decommissioning. Industries including oil and gas, aerospace, automotive, medical devices, and heavy manufacturing rely on this level of traceability to meet regulatory requirements and maintain quality control.
SOFRAY EMS supplies the XF530 Series with complete integration support for production lines across the GCC region. Our engineers handle everything from initial marking feasibility studies and sample testing through installation, commissioning, and operator training — ensuring your marking system delivers compliant, readable marks from day one.
KEY FEATURES
Electromagnetic & Pneumatic Marking Technology
Electromagnetic & Pneumatic marking creates permanent, tamper-proof identification directly in the material surface.
Direct Part Marking
Marks survive extreme conditions: heat, chemicals, abrasion, and weathering. Identification lasts the full lifecycle of the component.
Multi-Code Support
Mark text, serial numbers, logos, DataMatrix (ECC200), QR codes, and 1D barcodes in any combination per marking cycle.
200 x 50 mm Marking Window
Accommodates a wide range of marking layouts within the 200 x 50 mm marking area.
Production Line Ready
Designed for integration into automated production lines with PLC communication and automatic part detection.
Low Operating Cost
Only the marking stylus requires periodic replacement. No lasers, gases, inks, or labels — minimal ongoing costs.
MATERIAL COMPATIBILITY
Carbon Steel
Deep, permanent marks on structural steel, piping, and forged components for oil & gas and construction.
Stainless Steel
Clear identification marks on medical instruments, food processing equipment, and chemical plant components.
Aluminum & Alloys
Marking on cast, extruded, and machined aluminum components for aerospace and automotive applications.
Hardened Metals
Marks on heat-treated and case-hardened components up to 62 HRC without affecting material properties.
Engineering Plastics
Dot peen marking on rigid plastics including nylon, ABS, polycarbonate, and glass-filled compounds.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech XF530 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

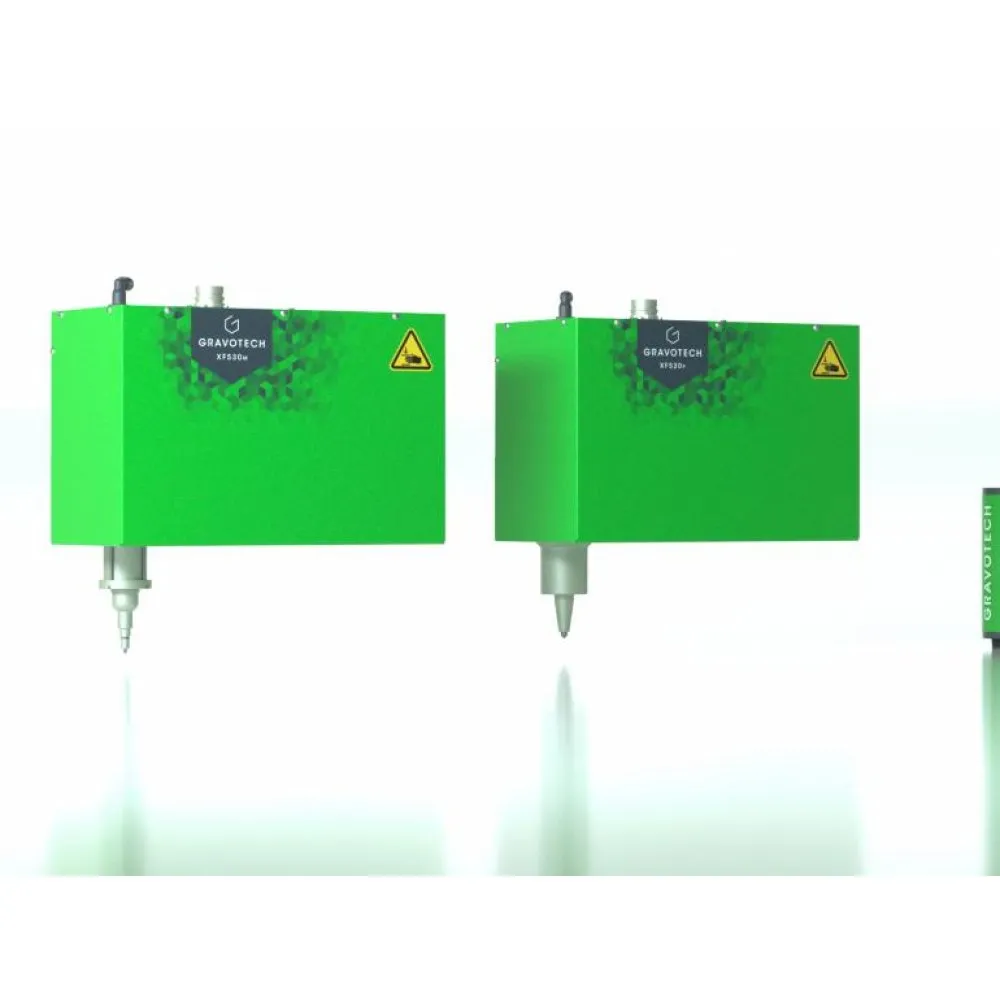

The XF530 p/m combines electromagnetic and pneumatic dual technology for deep marking capability exceeding standard dot peen systems. The 200 x 50 mm marking area handles large industrial components. Designed for applications requiring lifecycle traceability: logos, serial numbers, and 1D/2D codes marked permanently on parts that must be tracked through every stage. Used across aerospace, automotive, defense, maritime, and railway industries for direct part marking. Integrable into production lines and driven by LASERTRACE piloting software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the XF530 Series?
The XF530 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
How deep can the marks go?
Marking depth depends on the material hardness and machine configuration. On mild steel, depths of 0.1-0.5 mm are typical. On softer materials like aluminum, deeper marks are possible. We can run depth tests on your specific materials.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
