Integrable Fiber Laser
An integrable fiber laser system available in F20 (20W), F30 (30W), and F50 (50W) models with 10 kW peak power. Scan speed up to 10,000 mm/s across marking areas from 65 x 65 mm to 205 x 205 mm. The compact 8.3 kg head connects via 3 m cable (5 m optional) to a 16.6-20.6 kg control unit. Industry 4.0 compatible with Ethernet TCP/IP, RS232, USB, and 8I/8O interfaces. Class 4 system switchable to Class 1 with Mini-Inline module. Marks all metals on production lines and robot cells.
TECHNICAL SPECIFICATIONS
OVERVIEW
An integrated laser system to mark and engrave on all metals. Designed for industrial marking and traceability on production lines and factory robot cells. Heavy-duty, fast, reliable, and Industry 4.0 compatible.

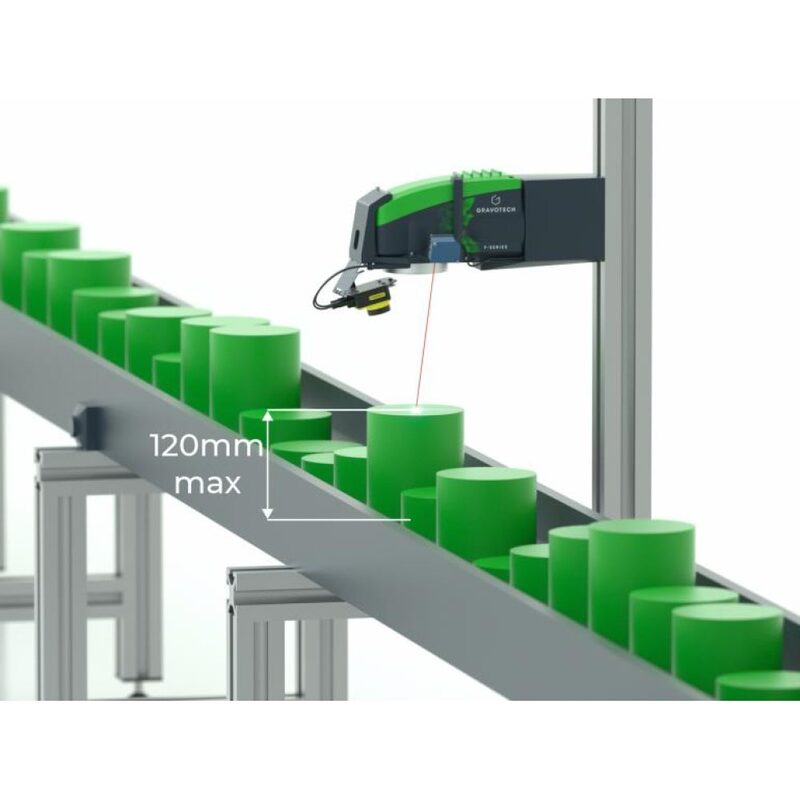

The Integrable Fiber Laser is purpose-built for integration into automated production lines, robotic cells, and custom manufacturing stations. Using Fiber Laser technology, it delivers permanent, high-contrast marks at production-line speeds — enabling real-time traceability marking without slowing down your throughput. The compact marking head mounts directly to your existing automation infrastructure via standard mechanical and electrical interfaces.
Industry 4.0 ready from the ground up, the Integrable Fiber Laser communicates seamlessly with PLCs, fieldbuses, and factory MES/ERP systems. This enables automated job loading, dynamic data marking (serial numbers, DataMatrix codes, timestamps), and real-time production logging. Whether you're marking automotive components, medical devices, or aerospace parts, the Integrable Fiber Laser meets the most demanding traceability standards including ISO/IEC 16022 DataMatrix and GS1 compliance. SOFRAY EMS provides complete integration support, from initial feasibility studies to on-site commissioning and operator training across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Fiber Laser Source
Fiber Laser technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
65 x 65 mm to 205 x 205 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Industry 4.0 Ready
Full PLC / Fieldbus, Industry 4.0 connectivity for seamless integration into automated production lines, robot cells, and factory networks.
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
APPLICATIONS
Industrial Traceability

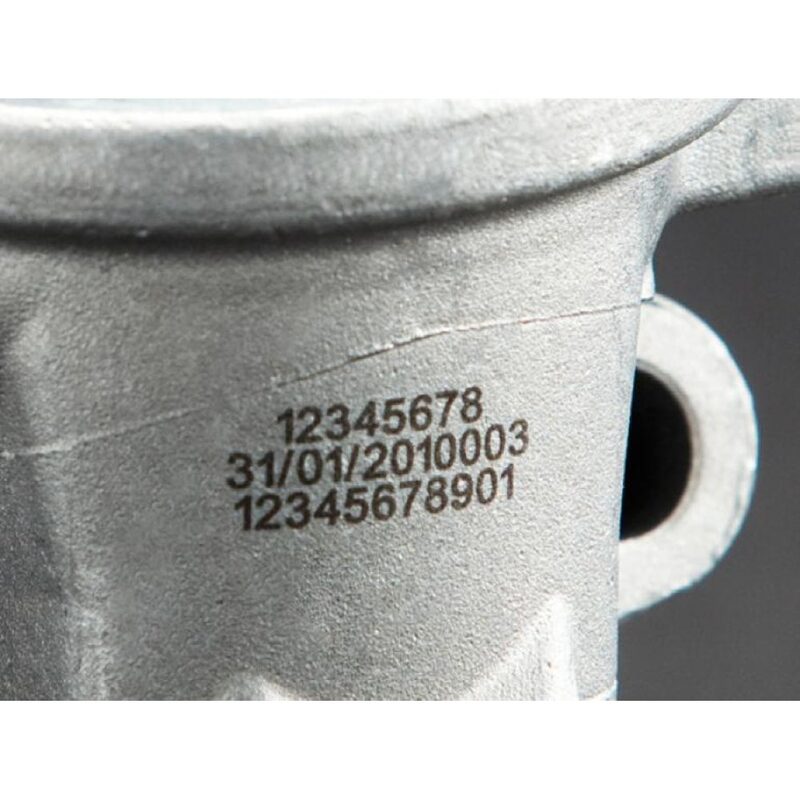

Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Integrable Fiber Laser supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

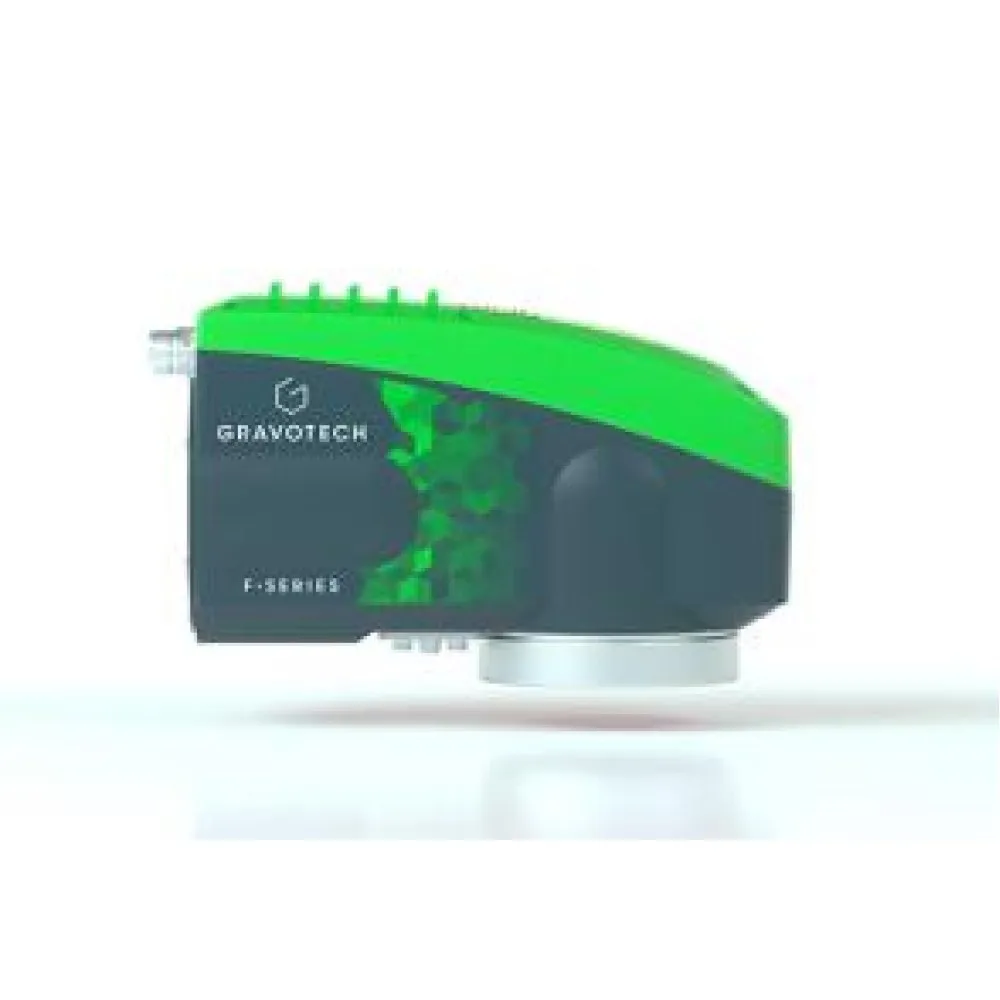

The integrable fiber laser features F20 (20W), F30 (30W), and F50 (50W) models with 1064 nm wavelength and 10 kW peak power. Frequency from 2 to 200 kHz with scan speed up to 10,000 mm/s. Four lens options provide marking areas from 65x65mm (F100) to 205x205mm (F330). The 8.3 kg marking head connects via 3 m fiber cable (5 m option) to the 16.6 kg (F20/F30) or 20.6 kg (F50) control unit. Industry 4.0 ready with Ethernet TCP/IP, RS232, USB, terminal block 8I/8O, and laser safety dedicated I/O interfaces. Class 4 system, switchable to Class 1 with Mini-Inline module or enclosure. Driven by LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Integrable Fiber Laser?
The Integrable Fiber Laser comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
