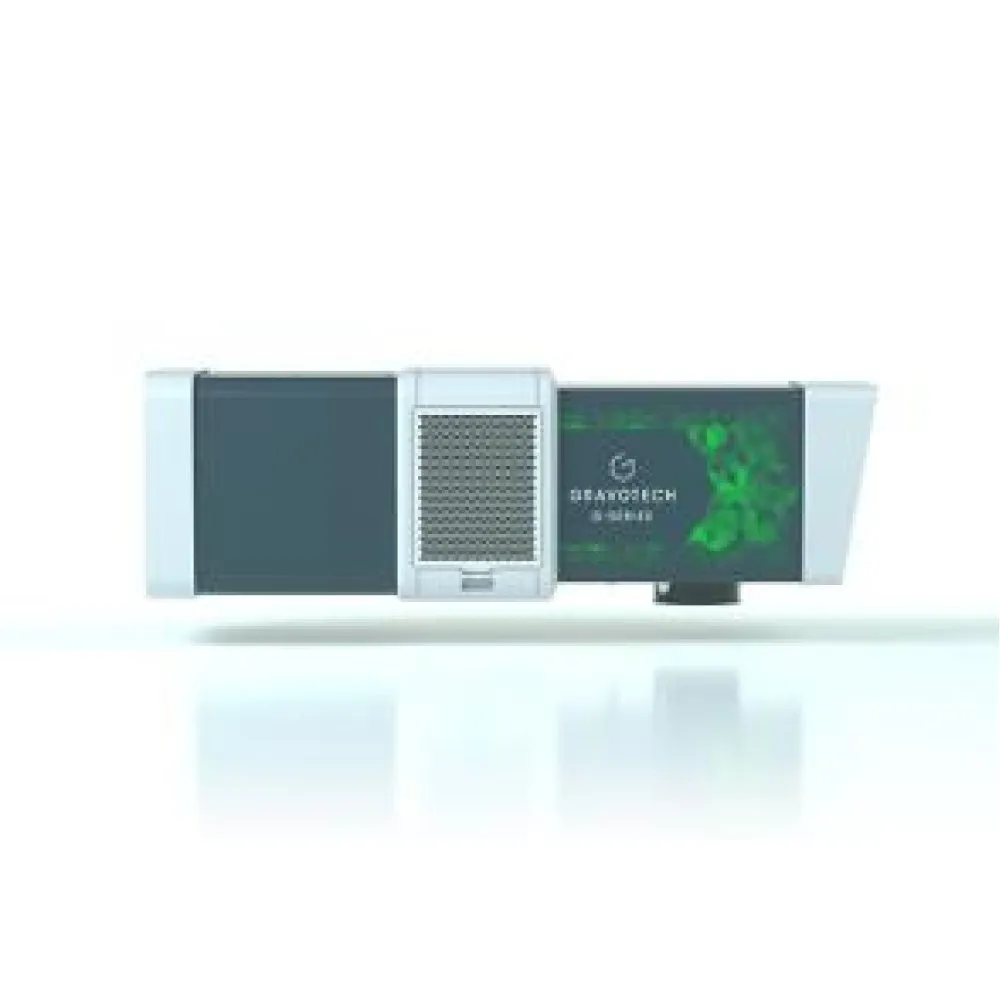

Integrable Green Laser
An integrable green laser with 5W DPSS source at 532 nm, delivering 70 kW peak power and a 20 μm spot size for exceptional micro marking. Scan speed up to 10,000 mm/s across 65 x 65 mm to 150 x 150 mm marking areas. The 19.8 kg monobloc design integrates without sensitive cable connections. Built-in HMI display for self-diagnostic and maintenance. Cold marking technology limits thermal stress, enabling precision marking on plastics, precious metals (copper, silver, gold), ceramic, and glass.
TECHNICAL SPECIFICATIONS
OVERVIEW
An integrated green laser system for high quality and cold marking on plastics and precious metals. Designed for applications requiring precision marking without thermal damage. Industry 4.0 compatible.
The Integrable Green Laser is purpose-built for integration into automated production lines, robotic cells, and custom manufacturing stations. Using Green Laser 532nm technology, it delivers permanent, high-contrast marks at production-line speeds — enabling real-time traceability marking without slowing down your throughput. The compact marking head mounts directly to your existing automation infrastructure via standard mechanical and electrical interfaces.
Industry 4.0 ready from the ground up, the Integrable Green Laser communicates seamlessly with PLCs, fieldbuses, and factory MES/ERP systems. This enables automated job loading, dynamic data marking (serial numbers, DataMatrix codes, timestamps), and real-time production logging. Whether you're marking automotive components, medical devices, or aerospace parts, the Integrable Green Laser meets the most demanding traceability standards including ISO/IEC 16022 DataMatrix and GS1 compliance. SOFRAY EMS provides complete integration support, from initial feasibility studies to on-site commissioning and operator training across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Green Laser 532nm Source
Green Laser 532nm technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
65 x 65 mm to 205 x 205 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
MATERIAL COMPATIBILITY
Precious Metals
High-quality marking on gold, silver, copper, and platinum without thermal damage to surrounding areas.
Sensitive Plastics
Cold marking on heat-sensitive polymers, medical plastics, and transparent materials.
PCB & Electronics
Precision marking on printed circuit boards and electronic components without thermal stress.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Jewelry Engraving
Inside ring engraving, pendant personalization, hallmarking, and decorative pattern work on precious metals and gemstone settings.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Integrable Green Laser supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

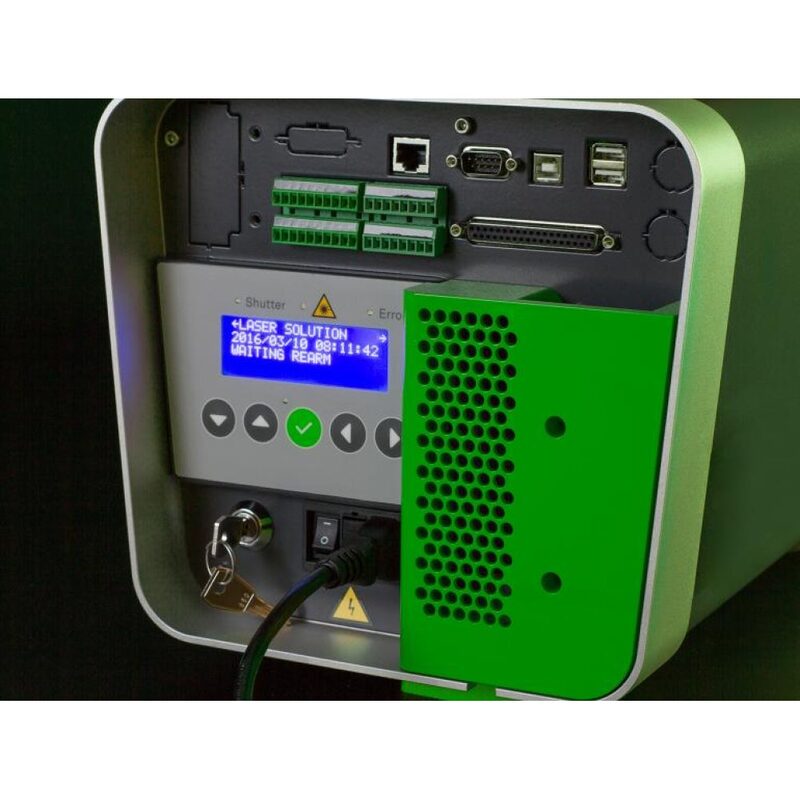

The integrable green laser (G5) uses DPSS technology at 532 nm with 5W power and 70 kW peak power. Frequency 10-100 kHz with scan speed up to 10,000 mm/s. The exceptional 20 μm spot size delivers outstanding micro marking quality. Three lens options: F100 (65x65mm), F160 (110x110mm), F254 (150x150mm). The 19.8 kg monobloc design requires no sensitive cable connections. Integrated HMI display for self-diagnostic, updates, fault history, and maintenance. Cold marking technology at 532 nm wavelength enables marking on materials non-reactive to infrared: rough to transparent plastics, steel, reflective metals (copper, silver, gold), ceramic, cardboard, wood, and glass. Class 4, switchable to Class 1. Driven by LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Integrable Green Laser?
The Integrable Green Laser comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Laser source lifetime varies by type. Contact SOFRAY EMS for specific lifetime expectations for your configuration.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
