Integrable Hybrid Laser
An integrable hybrid laser in H10 (10W) and H20 (20W) models using DPSS technology with 60 kW peak power and 8 ns pulse duration — 10x shorter than standard fiber. Monobloc design requires no sensitive cable connections. Scan speed up to 10,000 mm/s across 65 x 65 mm to 205 x 205 mm marking areas. Manages cylindrical surfaces, angled planes, and multi-level surfaces up to 120 mm amplitude without head movement. Built-in HMI display, washable filter, and operation up to 40°C.
TECHNICAL SPECIFICATIONS
OVERVIEW

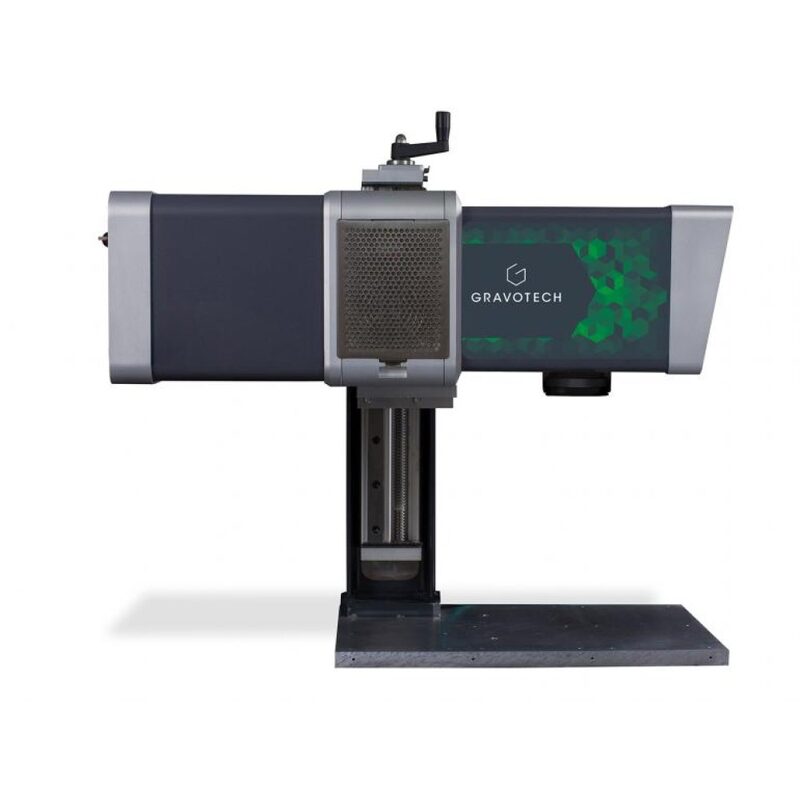

The Gravotech Integrable Hybrid Laser uses DPSS (Diode Pump Solid State) technology to deliver a unique combination of versatility and power. Available in H10 (10W) and H20 (20W) models, the hybrid laser features an 8 ns pulse duration — 10 times shorter than standard fiber lasers — generating peak power of up to 60 kW. This means significantly more energy per shot compared to standard fiber lasers of similar average power.

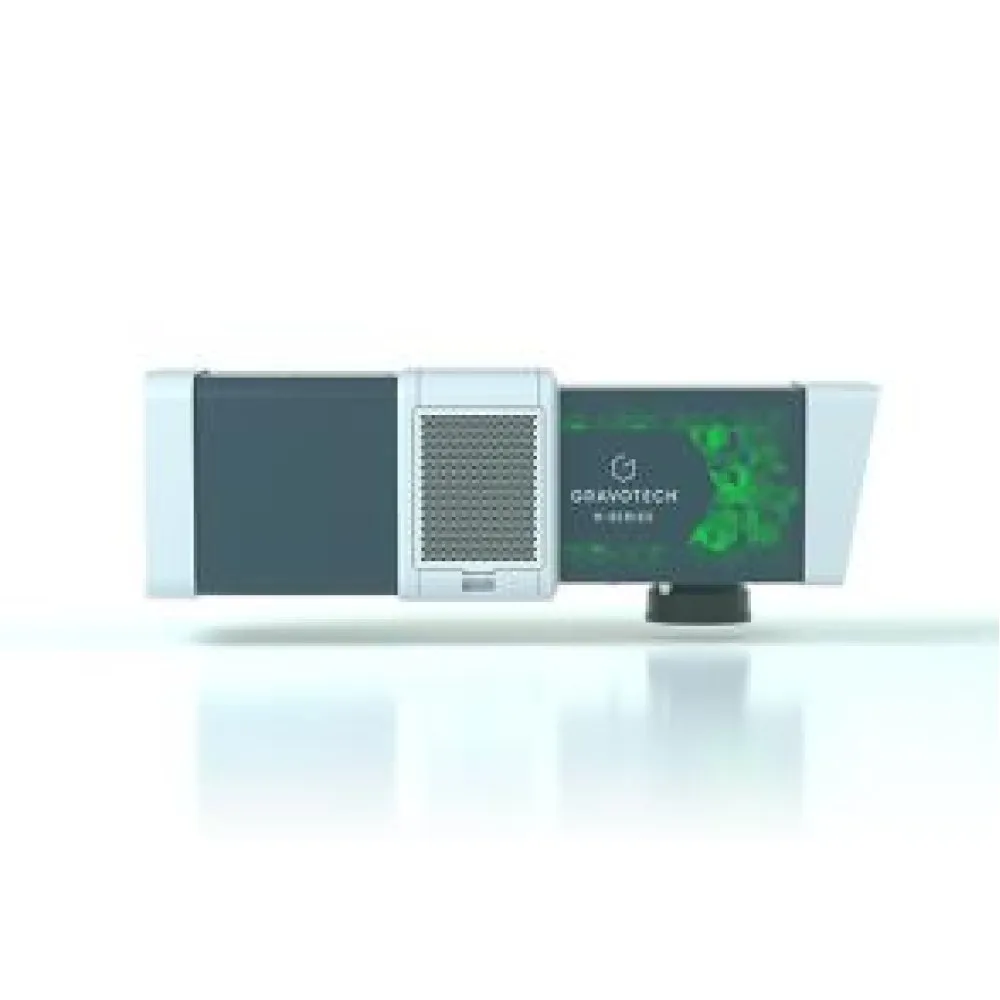

The monobloc design is a key engineering advantage: with no sensitive cable connections between the laser head and control unit, the hybrid laser is easier to integrate and more reliable in industrial environments. It operates at temperatures up to 40°C with a built-in washable filter for air cooling and protection against scratches and deposits.
What truly distinguishes the hybrid laser is its ability to manage cylindrical surfaces, angled planes, and multi-level surfaces without moving the marking head. It can mix curved surfaces and angled planes at different heights with up to 120 mm (4.72 inches) amplitude, enabling instantaneous marking on complex parts in a single operation.
Scan speed reaches 10,000 mm/s with marking areas from 65 x 65 mm to 205 x 205 mm depending on lens selection. Communication interfaces include Ethernet TCP/IP, terminal block 8I/8O, RS232, USB, with Profinet or Ethernet IP fieldbus options. An integrated HMI display provides self-diagnostic, software updates, fault history, and maintenance tracking. The system marks all metals (hard to soft) and all plastics (delicate to industrial).
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Hybrid (Fiber + CO2) Source
Hybrid (Fiber + CO2) technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
65 x 65 mm to 205 x 205 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Industry 4.0 Ready
Full PLC / Fieldbus, Industry 4.0 connectivity for seamless integration into automated production lines, robot cells, and factory networks.
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
Wood & Paper
Detailed engraving on wood, cardboard, and paper products for packaging and decorative applications.
Glass & Ceramics
Surface marking and frosting on glass, ceramic, and stone materials.
Organic Materials
Leather, fabric, rubber, and natural materials respond well to CO2 laser energy.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Integrable Hybrid Laser supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The integrable hybrid laser comes in H10 (10W) and H20 (20W) models using DPSS technology at 1064 nm. Peak power reaches 60 kW with 8 ns pulse duration — 10 times shorter than standard fiber lasers. Frequency 10-100 kHz with scan speed up to 10,000 mm/s. Four lens options from F100 (65x65mm) to F330 (205x205mm). Monobloc design eliminates sensitive cable connections. Manages cylindrical surfaces, angled planes, and multi-level surfaces without head movement, with amplitude up to 120 mm (4.72 inches). Operating temperature 15-40°C with rated voltage 100-240V AC. Built-in washable filter for air cooling. Integrated HMI display for self-diagnostic, updates, fault history, and maintenance. Communication: Ethernet TCP/IP, 8I/8O, RS232, USB, with Profinet or Ethernet IP fieldbus options. Class 4, switchable to Class 1. Driven by LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Integrable Hybrid Laser?
The Integrable Hybrid Laser comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
