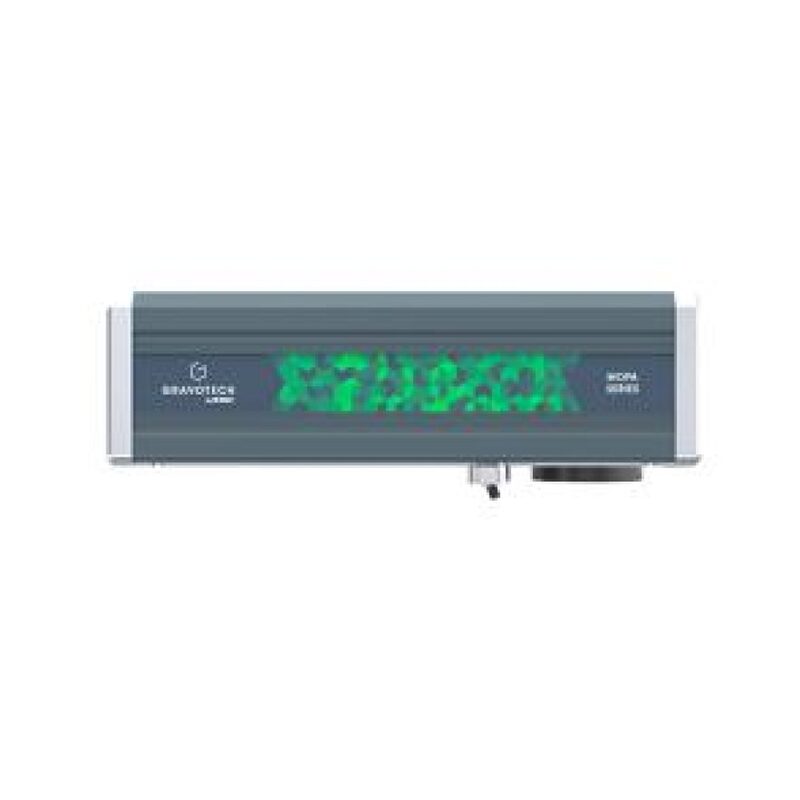

Integrable MOPA Laser
The integrable MOPA laser offers 30W and 60W options with adjustable 2-500 ns pulse duration and frequency up to 4,000 kHz. Scan speed up to 10,000 mm/s across marking areas from 65 x 65 mm to 205 x 205 mm. IP54-rated marking head with 3 m cable (5 m optional). Industry 4.0 compatible with Ethernet TCP/IP, Profinet, Ethernet IP, RS232, and USB x3. Better contrast on non-precious metals with improved cycle times over standard fiber. Color marking capability on stainless steel.
TECHNICAL SPECIFICATIONS
OVERVIEW
The integrable MOPA Laser boosts industrial marking performance with unmatched versatility and contrast. Designed for high-quality marking on both plastics and metals. Heavy-duty, fast, reliable, and Industry 4.0 compatible.
The Integrable MOPA Laser is purpose-built for integration into automated production lines, robotic cells, and custom manufacturing stations. Using MOPA Fiber technology, it delivers permanent, high-contrast marks at production-line speeds — enabling real-time traceability marking without slowing down your throughput. The compact marking head mounts directly to your existing automation infrastructure via standard mechanical and electrical interfaces.
Industry 4.0 ready from the ground up, the Integrable MOPA Laser communicates seamlessly with PLCs, fieldbuses, and factory MES/ERP systems. This enables automated job loading, dynamic data marking (serial numbers, DataMatrix codes, timestamps), and real-time production logging. Whether you're marking automotive components, medical devices, or aerospace parts, the Integrable MOPA Laser meets the most demanding traceability standards including ISO/IEC 16022 DataMatrix and GS1 compliance. SOFRAY EMS provides complete integration support, from initial feasibility studies to on-site commissioning and operator training across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
MOPA Fiber Source
MOPA Fiber technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
65 x 65 mm to 205 x 205 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Industry 4.0 Ready
Full Industry 4.0 connectivity for seamless integration into automated production lines, robot cells, and factory networks.
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
APPLICATIONS
Industrial Traceability

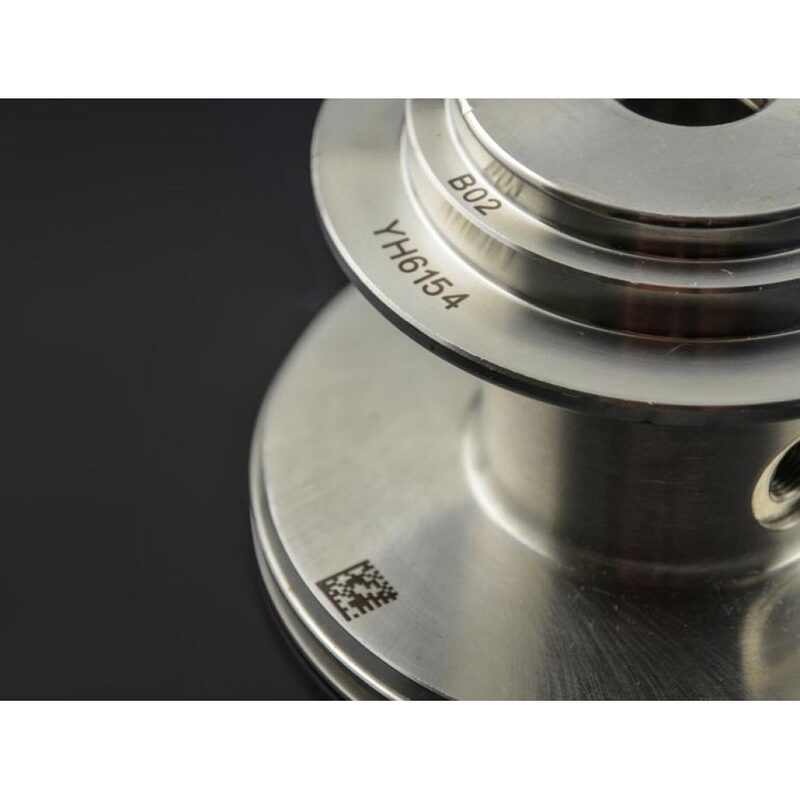

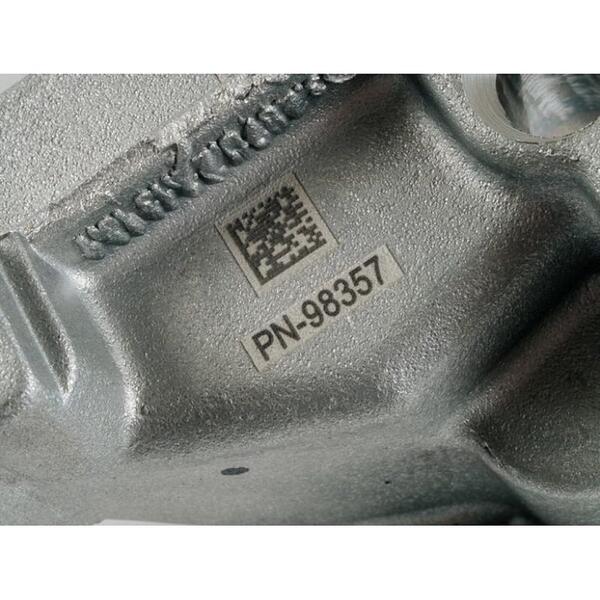

Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Integrable MOPA Laser supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The integrable MOPA laser comes in 30W and 60W versions at 1064 nm wavelength. Adjustable pulse duration from 2 to 500 ns with frequency range 1-4,000 kHz. Beam diameter from 30 μm at scan speeds up to 10,000 mm/s. Four lens options from F100 (65x65mm) to F330 (205x205mm). The IP54-rated marking head connects via 3 m cable (5 m option). Enhanced communication: Ethernet TCP/IP, Profinet, Ethernet IP, dedicated I/O (SUB D37), 8I/8O, RS232, and USB x3. Improved cycle times over standard fiber with better contrast on non-precious metals. Color marking on stainless steel capability. Class 4, switchable to Class 1. Driven by LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Integrable MOPA Laser?
The Integrable MOPA Laser comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
