LW2

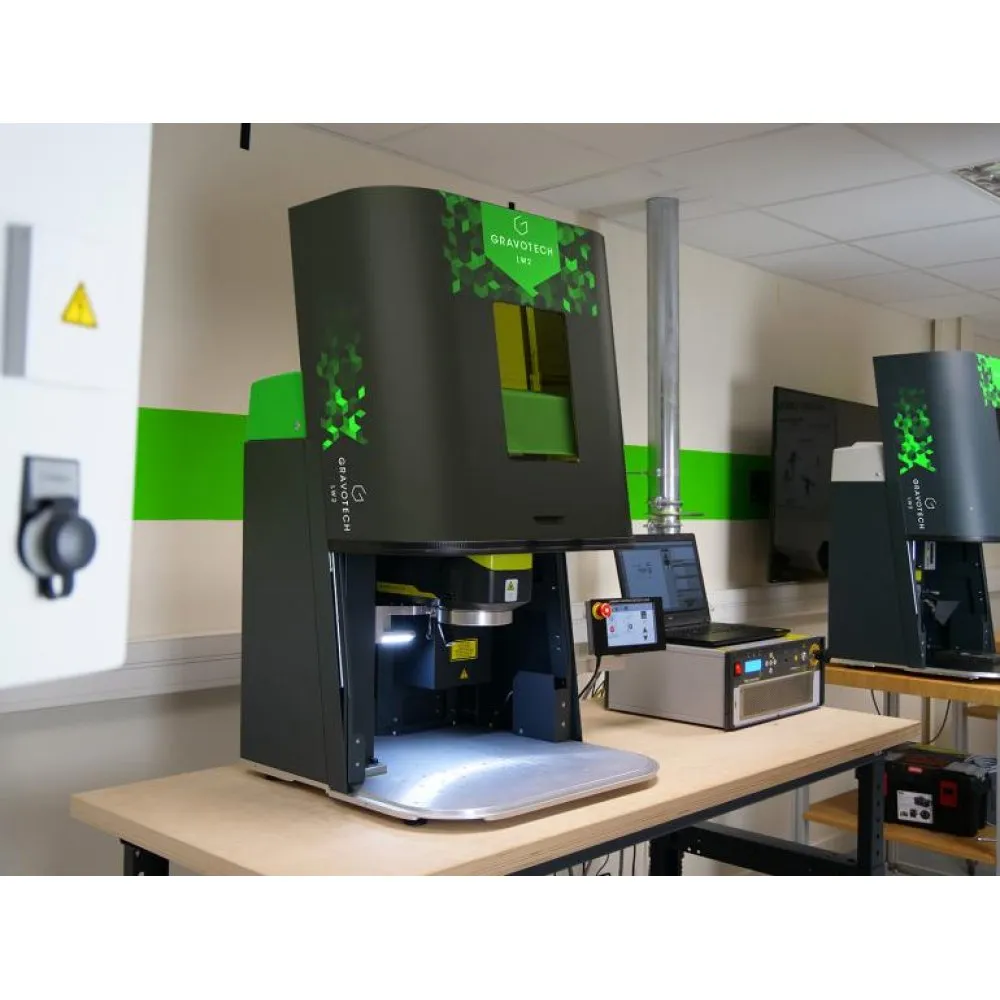

The LW2 is a medium fully automated Class 1 laser marking station with up to 205 x 205 mm marking area. Its 500 x 475 mm working area accommodates objects up to 322 mm height (motorized Z-axis) and 25 kg. The automatic door opens in 2 seconds for high-throughput production. Compatible with Fiber, MOPA, Hybrid, Green, and CO2 integrable laser sources up to 50W. Features G-Eye camera system compatibility, rotary device support, and benchtop design.
TECHNICAL SPECIFICATIONS
OVERVIEW
The LW2 is a medium fully automated laser marking station designed for industrial applications. Suitable for high-speed identification and personalization on metals and plastics, with the highest safety standards.
The LW2 is a fully enclosed, automated laser marking workstation designed for production environments that demand both throughput and safety. With its Up to 205 x 205 mm marking area and Fiber Laser source options, the LW2 handles everything from unit-level personalization to medium-batch production runs. The Class 1 safety enclosure means the machine can operate in any environment — no laser safety officer required, no restricted zones, no protective eyewear.
Built for the factory floor, the LW2 features automated door operation, programmable Z-axis focus, and optional conveyor integration for inline production. The Fiber Laser source delivers maintenance-free operation with an expected lifetime exceeding 100,000 hours — eliminating the consumable costs and downtime associated with older laser technologies. Combined with Gravotech's LaserTrace software for traceability or LaserStyle for general marking, the LW2 provides a complete marking solution that integrates seamlessly into modern manufacturing workflows.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Fiber Laser Source
Fiber Laser technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
Up to 205 x 205 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Advanced Capabilities
Fully automated, high-speed marking
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech LW2 supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The LW2 features a working area of 500 x 475 mm with marking area up to 205 x 205 mm depending on the laser source and lens configuration. Maximum object height is 322 mm with the motorized Z-axis, and maximum object weight is 25 kg. The automatic door opens and closes in 2 seconds for high-throughput production. Class 1 certified for maximum safety. Compatible with Fiber, MOPA, Hybrid, Green, and CO2 integrable laser sources with power up to 50W. Features G-Eye camera system compatibility for vision-guided marking, rotary device support for cylindrical parts, and exhaust system compatibility. Benchtop design. Driven by GravoStyle or LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the LW2?
The LW2 comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
