LW3

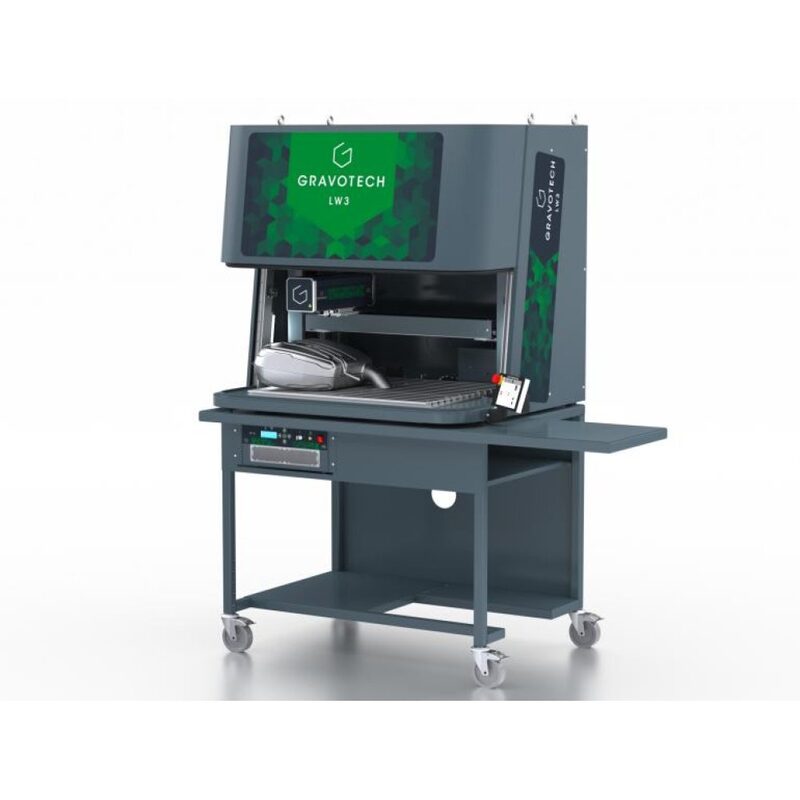

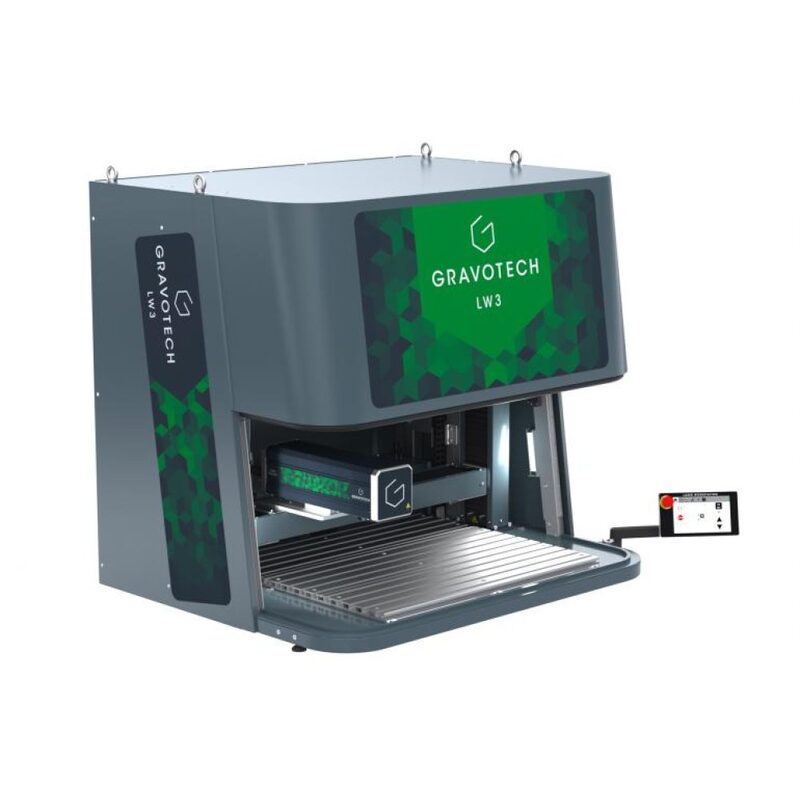

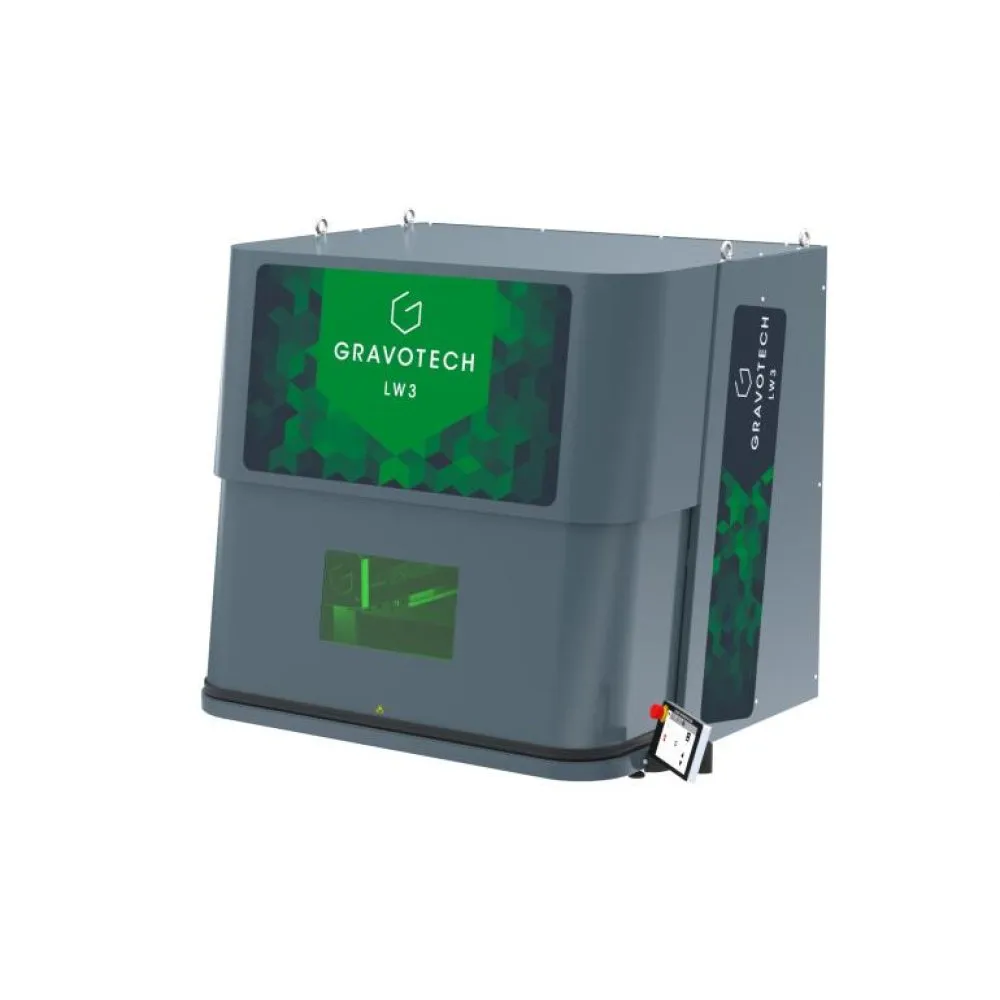

The LW3 is a large, fully automated Class 1 laser workstation weighing 200 kg with up to 300 x 300 mm marking area. Its 3-sided door provides easy access to parts up to 810 x 720 x 628 mm (internal volume up to 1,100 x 750 x 628 mm). The only Gravotech Class 1 enclosure for large direct part marking. Features attached touchscreen, Z-axis, ZX bridge for long parts, optional wheels, G-Eye camera, and rotary device compatibility. Works with Fiber, MOPA, Hybrid, and Green sources.
TECHNICAL SPECIFICATIONS
OVERVIEW
The LW3 is a large fully automated laser workstation with Fiber, MOPA, Hybrid or Green sources. Offers high speed operation, from unit to small batch production, with the highest safety standards. Production-ready and integrable into robot cells.
The LW3 is a fully enclosed, automated laser marking workstation designed for production environments that demand both throughput and safety. With its Up to 875 x 300 mm marking area and Fiber / MOPA / Hybrid / Green source options, the LW3 handles everything from unit-level personalization to medium-batch production runs. The Class 1 safety enclosure means the machine can operate in any environment — no laser safety officer required, no restricted zones, no protective eyewear.
Built for the factory floor, the LW3 features automated door operation, programmable Z-axis focus, and optional conveyor integration for inline production. The Fiber / MOPA / Hybrid / Green source delivers maintenance-free operation with an expected lifetime exceeding 100,000 hours — eliminating the consumable costs and downtime associated with older laser technologies. Combined with Gravotech's LaserTrace software for traceability or LaserStyle for general marking, the LW3 provides a complete marking solution that integrates seamlessly into modern manufacturing workflows.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Fiber / MOPA / Hybrid / Green Source
Fiber / MOPA / Hybrid / Green technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
Up to 875 x 300 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Advanced Capabilities
Fully automated, conveyor ready, PLC integration
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
Precious Metals
High-quality marking on gold, silver, copper, and platinum without thermal damage to surrounding areas.
Sensitive Plastics
Cold marking on heat-sensitive polymers, medical plastics, and transparent materials.
PCB & Electronics
Precision marking on printed circuit boards and electronic components without thermal stress.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech LW3 supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The LW3 weighs 200 kg and offers the largest Class 1 enclosure in Gravotech's range. Marking area reaches up to 300 x 300 mm. Maximum object dimensions are 810 x 720 x 628 mm with internal volume up to 1,100 x 750 x 628 mm for accommodating large parts. The unique 3-sided door provides the best inside height dimensions for enveloping and marking large components. Attached touchscreen manages operator workflows. Available with Z-axis for multi-level marking and ZX bridge for multiple markings on long parts. Optional wheels for mobility. Compatible with Fiber, MOPA, Hybrid, and Green integrable laser sources, G-Eye camera system, rotary devices, and exhaust systems. Driven by GravoStyle or LaserTrace software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the LW3?
The LW3 comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
