Mini-Inline

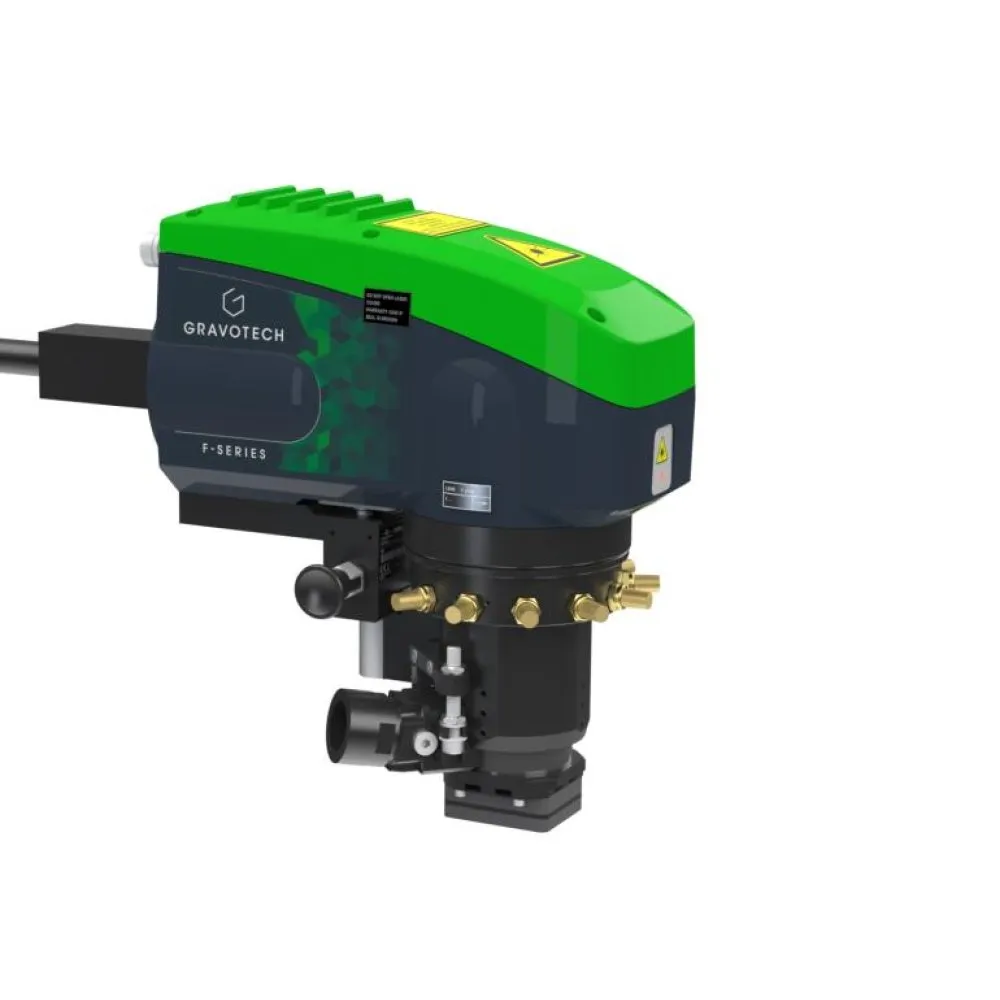

The Mini-Inline is a laser protection nose (293 x 192 x 168 mm) that creates a Class 1 certified safety zone between integrable laser markers and parts. Operates at 10-40°C on parts up to 100°C with a 32 x 42 mm marking area. Goes up to 70,000 marking cycles before cleaning. Mountable on robot arms, it eliminates the need for full Class 1 enclosures while providing particle extraction at the marking location. Safety interlocks prevent laser emission if the funnel isn't properly closed.
TECHNICAL SPECIFICATIONS
OVERVIEW
A laser protection nose for integrable laser markers. A protective module designed to accompany integrable laser marking systems in production environments for identification and manufacturing applications.
The Gravotech Mini-Inline represents the next generation of galvo laser marking technology, delivering exceptional mark quality at production-ready speeds. Using advanced laser technology, the Mini-Inline produces permanent, high-contrast marks on Plastics and metals with micron-level precision. The galvo scanning system steers the laser beam without moving the workpiece, enabling marking speeds that mechanical methods simply cannot match.
Whether you need to mark serial numbers for traceability, engrave logos for branding, or produce complex 2D codes for supply chain management, the Mini-Inline handles it all with consistent quality across production volumes from single units to thousands of parts per hour. Compatible with Gravotech's LaserTrace and LaserStyle software, the Mini-Inline integrates into both standalone and networked production environments. SOFRAY EMS provides the complete package: machine supply, installation, operator training, and ongoing maintenance support across the entire GCC region.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
Laser Source
Advanced technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Flexible Work Area
32 x 42 mm marking field configurable with different focal length lenses to optimize for your specific part size and detail requirements.
Industry 4.0 Ready
Full Production lines, factories, robot cells connectivity for seamless integration into automated production lines, robot cells, and factory networks.
APPLICATIONS
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech Mini-Inline supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

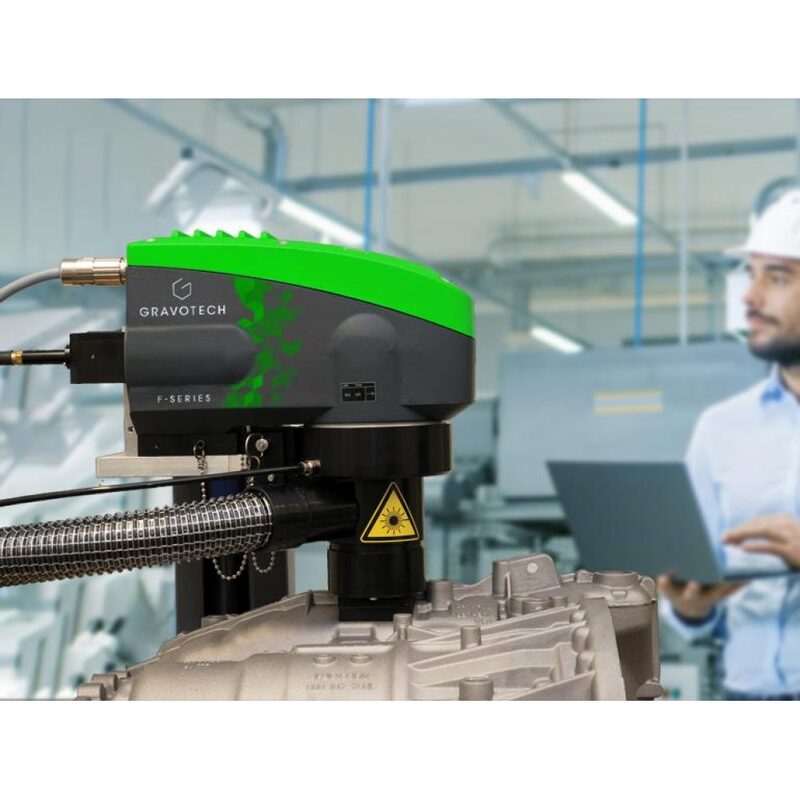

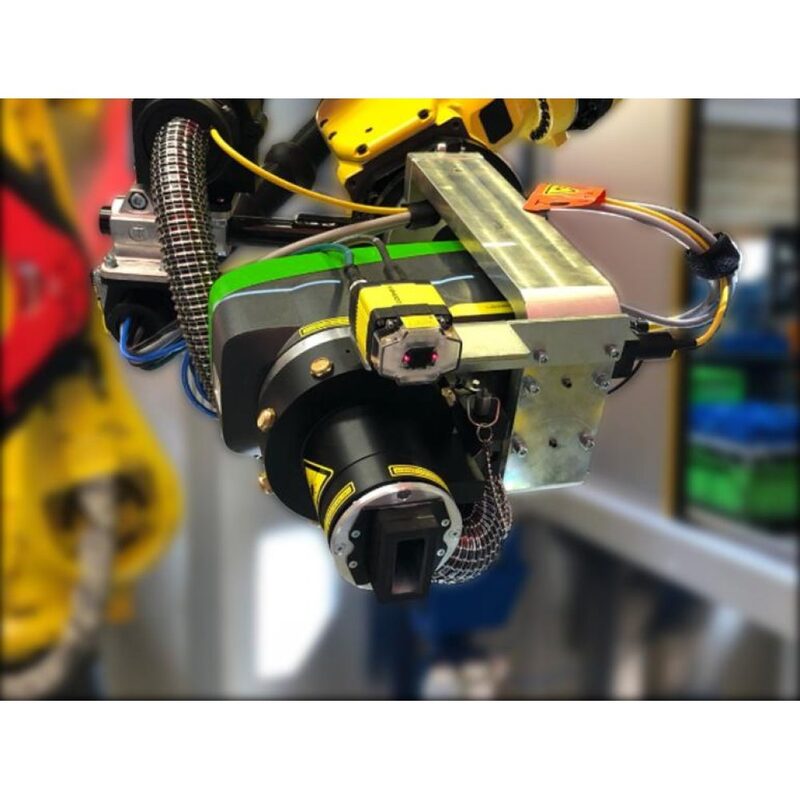

The Mini-Inline measures 293 x 192 x 168 mm and operates at 10-40°C with maximum part temperature of 100°C. The 32 x 42 mm marking area is defined by the protection funnel. Class 1 certified — the laser beam is totally isolated from the surroundings with no risk of eye or skin hazards. Safety systems prevent laser emission if the funnel is not properly closed. Up to 70,000 marking cycles before cleaning (depending on application). Easily dismantled for cleaning and replacement. Can be mounted directly on a robot arm with the laser marker attached. Provides particle extraction directly at the marking location. Eliminates the need for full Class 1 laser enclosures, reducing costs and space requirements.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the Mini-Inline?
The Mini-Inline comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Laser source lifetime varies by type. Contact SOFRAY EMS for specific lifetime expectations for your configuration.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
