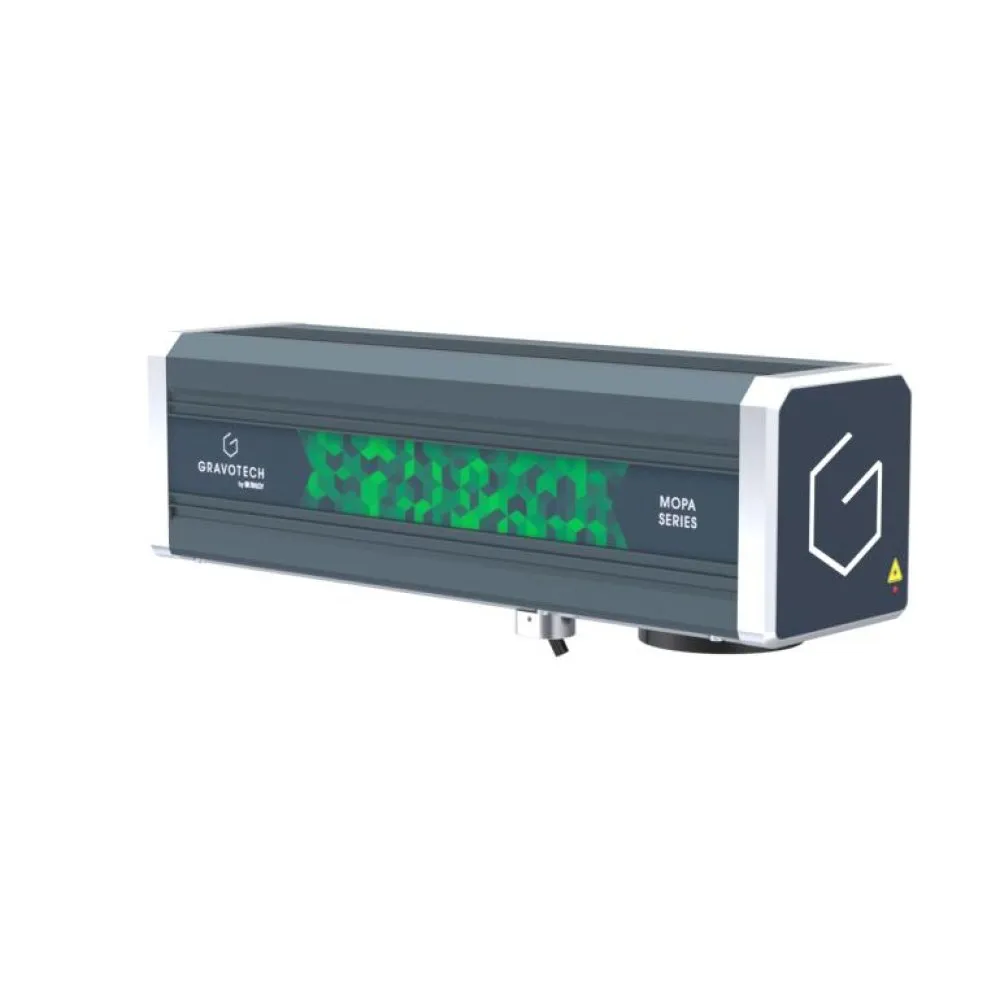

MOPA Series
The MOPA Series features adjustable pulse duration from 2 to 500 ns for unmatched marking versatility. Available in 30W and 60W with frequency up to 4,000 kHz, beam diameter from 30 μm, and scan speed up to 10,000 mm/s. Marking areas from 65 x 65 mm to 205 x 205 mm. The IP54-rated marking head connects via Ethernet TCP/IP, Profinet, Ethernet IP, RS232, and USB. Enables color marking on stainless steel and high-contrast marking on plastics and non-precious metals.
TECHNICAL SPECIFICATIONS
OVERVIEW
The MOPA Series boosts industrial marking performance with unmatched versatility and contrast. Adjustable pulse duration enables color marks on stainless steel and fine engravings on anodized aluminum.

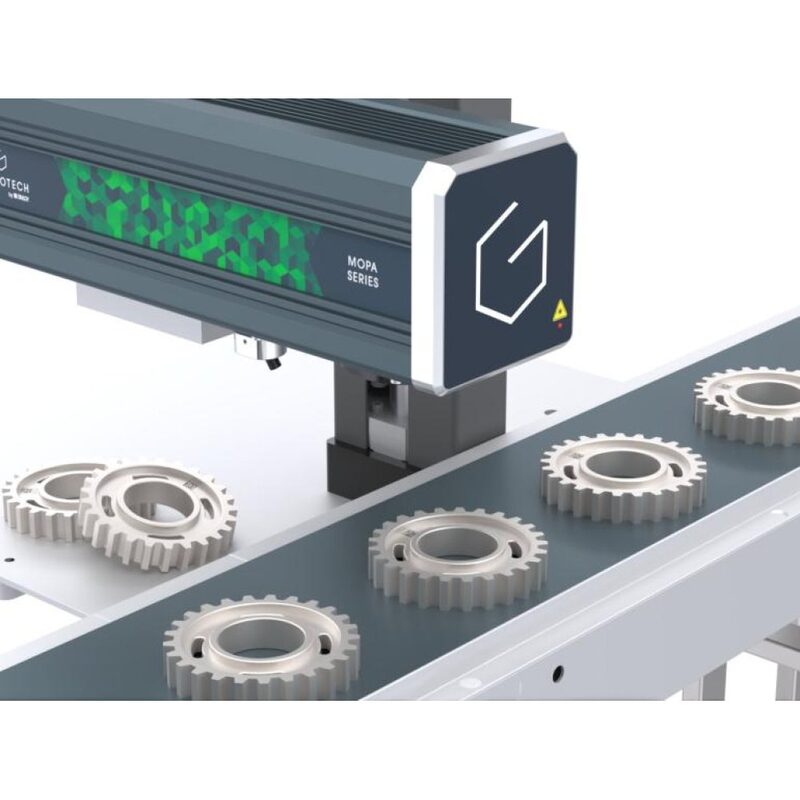

The Gravotech MOPA Series represents the next generation of galvo laser marking technology, delivering exceptional mark quality at production-ready speeds. Using MOPA Fiber technology with power options from 20W - 60W, the MOPA Series produces permanent, high-contrast marks on metals and plastics with micron-level precision. The galvo scanning system steers the laser beam without moving the workpiece, enabling marking speeds that mechanical methods simply cannot match.
Whether you need to mark serial numbers for traceability, engrave logos for branding, or produce complex 2D codes for supply chain management, the MOPA Series handles it all with consistent quality across production volumes from single units to thousands of parts per hour. Color marking on steel, high contrast on plastics. Compatible with Gravotech's LaserTrace and LaserStyle software, the MOPA Series integrates into both standalone and networked production environments. SOFRAY EMS provides the complete package: machine supply, installation, operator training, and ongoing maintenance support across the entire GCC region.
KEY FEATURES
High-Speed Galvo Scanning
Galvanometer-driven mirrors steer the laser beam at speeds exceeding 7,000 mm/s — dramatically faster than gantry-based systems.
MOPA Fiber Source
MOPA Fiber technology delivers maintenance-free operation with 100,000+ hour expected lifetime — no consumable tubes or gases.
Permanent Marking
Creates marks that are physically part of the material surface — resistant to chemicals, abrasion, heat, and UV exposure.
Advanced Capabilities
Color marking on steel, high contrast on plastics
MATERIAL COMPATIBILITY
Stainless Steel
High-contrast annealing marks, deep engraving, and black/white marking for industrial traceability.
Aluminum
Clear marking on bare, anodized, and painted aluminum surfaces. Anodized aluminum produces high-contrast white marks.
Hardened Steel & Tool Steel
Permanent marking on heat-treated components without affecting surface hardness or integrity.
Engineering Plastics
Marking on ABS, polycarbonate, nylon, PEEK, and other technical polymers used in automotive and electronics.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Jewelry Engraving
Inside ring engraving, pendant personalization, hallmarking, and decorative pattern work on precious metals and gemstone settings.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech MOPA Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

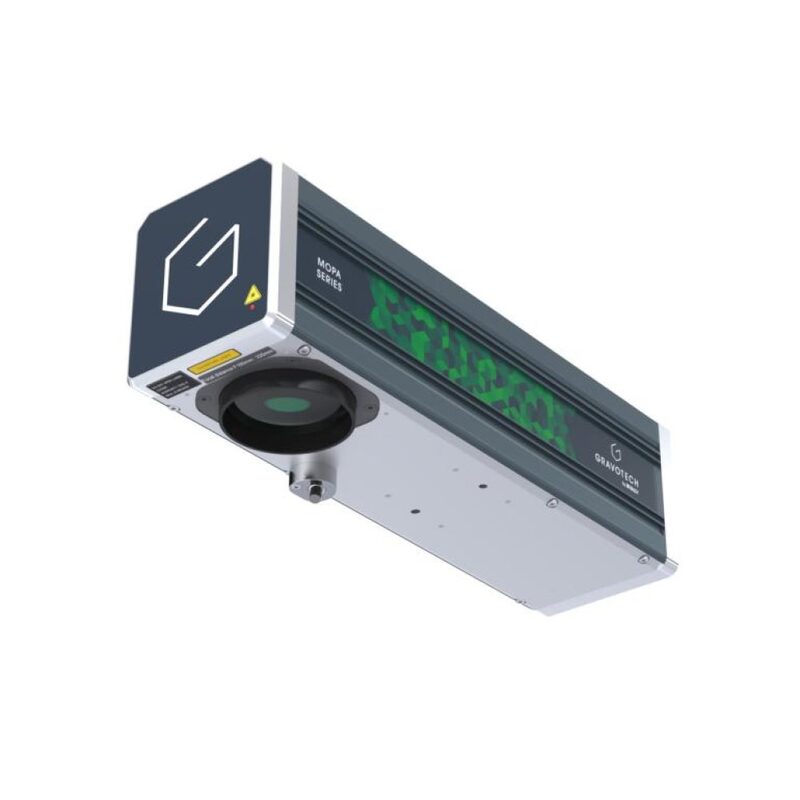

The MOPA integrable laser is available in 30W and 60W models with 1064 nm wavelength. The adjustable pulse duration from 2 to 500 ns enables versatile marking from color effects on stainless steel to fine engravings on anodized aluminum. Frequency ranges from 1 to 4,000 kHz with beam diameter from 30 μm and scan speed up to 10,000 mm/s. Four lens options from F100 (65x65mm) to F330 (205x205mm). IP54 rated marking head with 3 m fiber cable (5 m option). Communication interfaces include Ethernet TCP/IP, Profinet, Ethernet IP, dedicated I/O (SUB D37), 8I/8O, RS232, and USB x3. Class 4 system, switchable to Class 1.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the MOPA Series?
The MOPA Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
