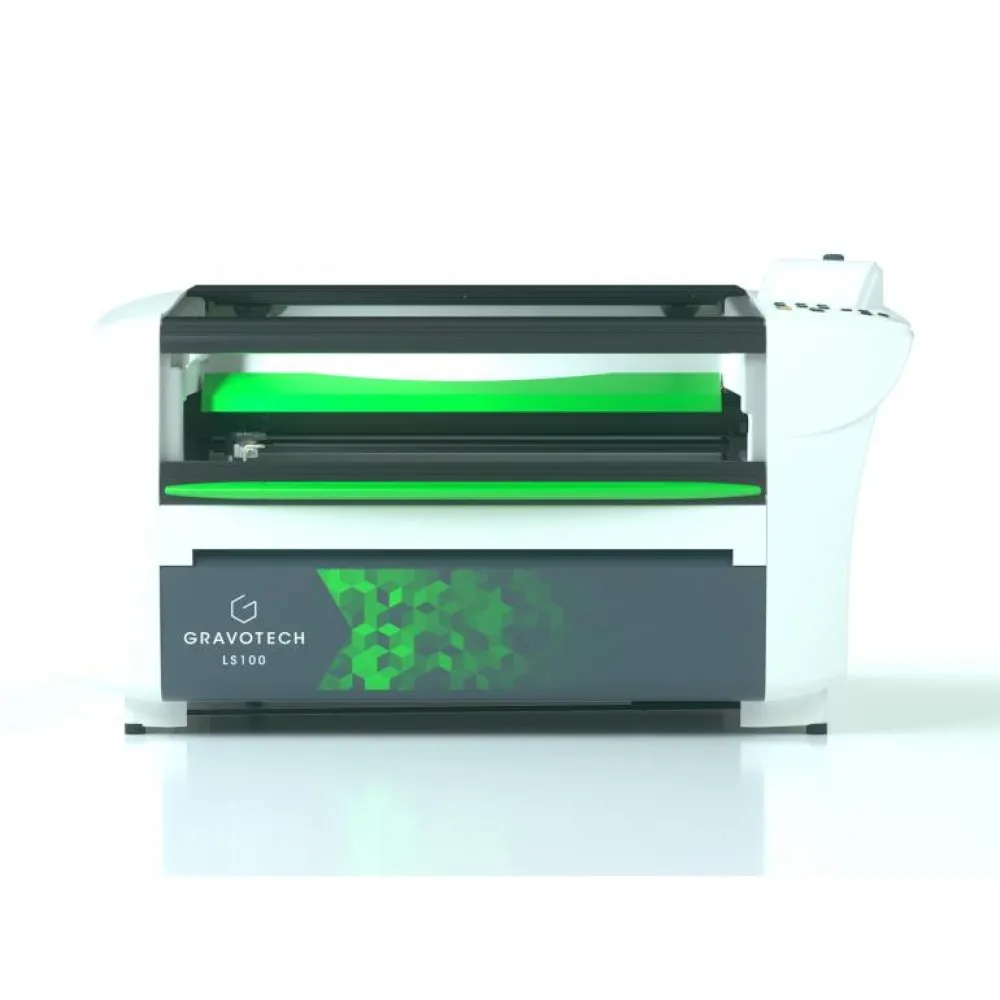

LS100 Series
The LS100 is a compact CO2 laser engraver weighing 43 kg with a one-piece aluminum chassis. Its 460 x 305 mm marking area handles materials up to 145 mm high and 15 kg. Available in 25W to 60W power options, it reaches speeds of 2,540 mm/s with beam diameters from 0.1 to 0.4 mm. Operating at ≤70 dB(A), it's CDRH Class 2 certified with an integrated air compressor. Five lens options (1.5" to 4.0") and USB connectivity. Engraves and cuts plastics, wood, glass, organic materials, and painted surfaces.
TECHNICAL SPECIFICATIONS
OVERVIEW
The LS100 is a small CO2 laser engraver designed for versatile marking applications. Enables work with plastics, wood, glass and other organic materials. Primary use cases include personalization, creative and signage applications.
The LS100 Series gantry laser system combines the precision of laser technology with the versatility of a large-format flatbed design. Using a CO2 Laser source, the machine directs a focused beam across the entire 460 x 305 mm working area to engrave and cut materials with micron-level precision. Unlike mechanical engraving, laser processing is non-contact — there's no tool wear, no clamping force on delicate items, and no vibration that could damage precision components.
From personalized gifts and retail signage to industrial prototypes and architectural models, the LS100 Series handles an impressive range of applications. The enclosed Class 2 design includes integrated fume extraction, ensuring safe operation in office, retail, and workshop environments. Gravotech's user-friendly software makes the LS100 Series accessible to beginners while offering advanced features like variable power mapping, image engraving, and precise cutting profiles that experienced operators demand.
KEY FEATURES
Non-Contact Processing
Laser engraving and cutting requires no physical contact with the workpiece — no tool wear, no clamping force, and no vibration damage.
CO2 Laser Technology
CO2 Laser source delivers precise energy control for both delicate surface marking and deep material removal.
Large Work Area
The 460 x 305 mm bed accommodates oversized workpieces and batch production layouts with room to spare.
Enclosed Safety Design
Class 2 laser safety enclosure with integrated fume extraction — safe for office, retail, and educational environments.
Dual Capability
Both engraving and cutting in a single machine — switch between operations without changing equipment.

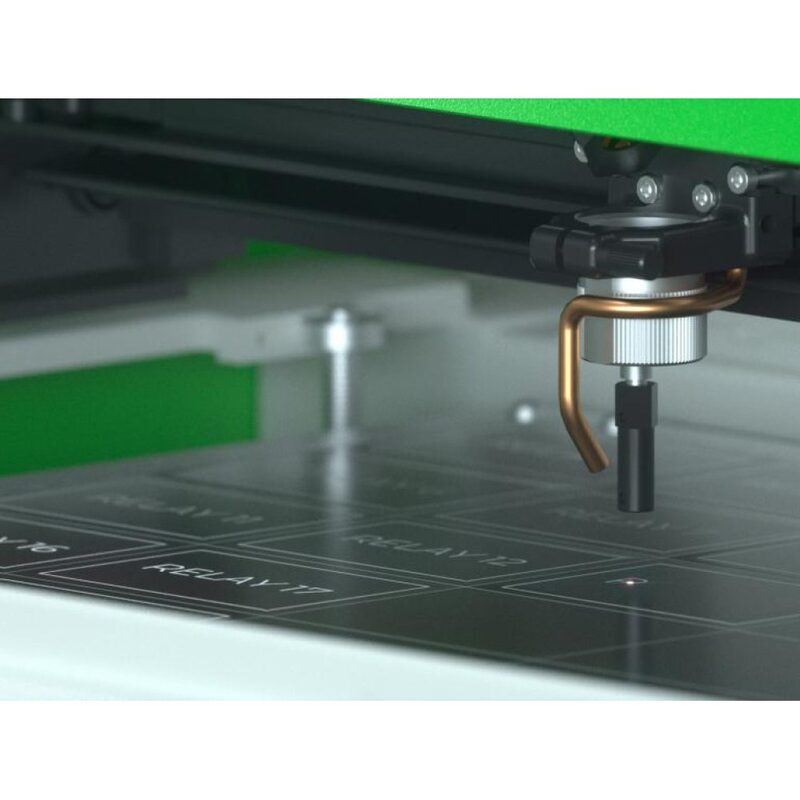

Autofocus System
Automatic focus adjustment ensures consistent engraving quality across materials of varying thickness without manual intervention.
MATERIAL COMPATIBILITY
Wood & MDF
Clean laser engraving and precision cutting on hardwoods, softwoods, plywood, and MDF for signage and decorative work.
Acrylic & Plastics
Crystal-clear edge cuts on acrylic and detailed surface engraving on ABS, delrin, and engineering plastics.
Glass & Crystal
Surface frosting and detailed engraving on flat and curved glass items for awards, gifts, and architectural applications.
Leather & Fabric
Precision engraving and cutting on natural and synthetic leather, felt, and technical textiles.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.

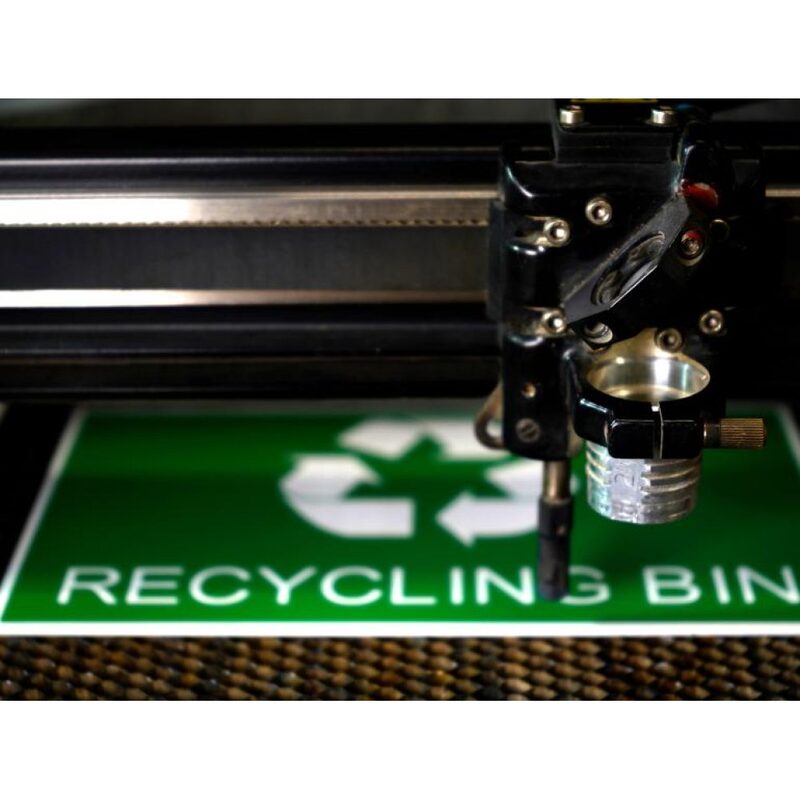

Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Education & Training
Safe, versatile equipment for university fablabs, technical schools, and vocational training centers teaching design and manufacturing.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech LS100 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

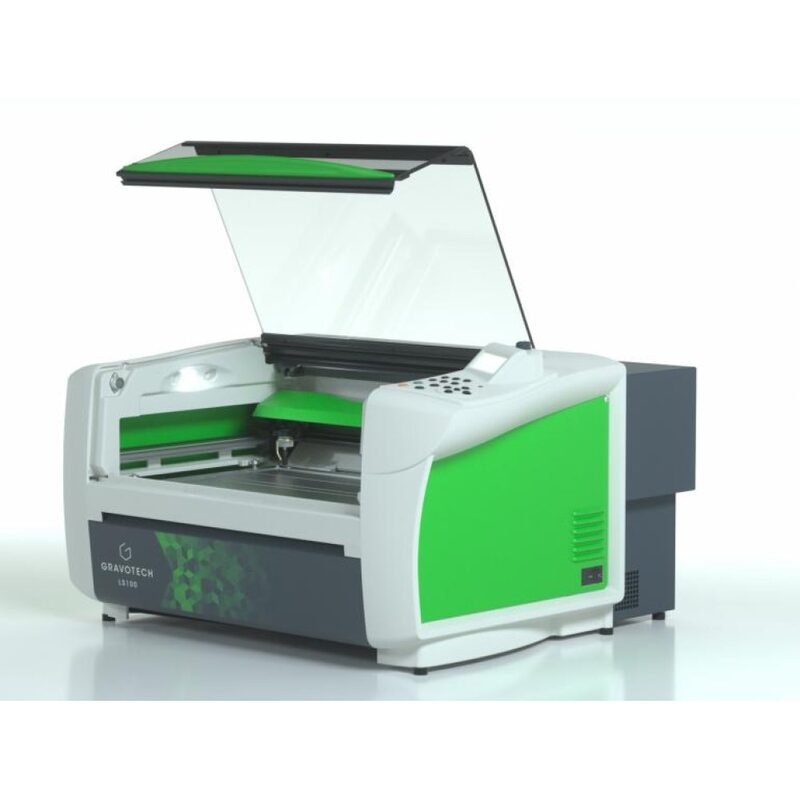

The LS100 features a one-piece aluminum chassis measuring 775 x 725 x 450 mm and weighing 43 kg. The CO2 RF laser (air-cooled) is available in 25W, 30W, 40W, and 60W versions with maximum speed of 2,540 mm/s. Beam diameter ranges from 0.1 to 0.4 mm depending on lens selection (1.5", 2.0", 2.5", 3.5", 4.0"). The 460 x 305 mm marking area accommodates objects up to 145 mm height and 15 kg. Noise level is ≤70 dB(A) with operating temperature range of 10-35°C. Connected via USB with CDRH Class 2 safety classification. Integrated air compressor keeps the lens clean during operation. Software features include Point & Shoot positioning, matrix mode for batch production, and Print & Cut technology (Mimaki partnership).
FREQUENTLY ASKED QUESTIONS
What warranty comes with the LS100 Series?
The LS100 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
CO2 laser tubes typically last 10,000-20,000 hours depending on usage patterns. Replacement tubes are available through SOFRAY EMS.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
