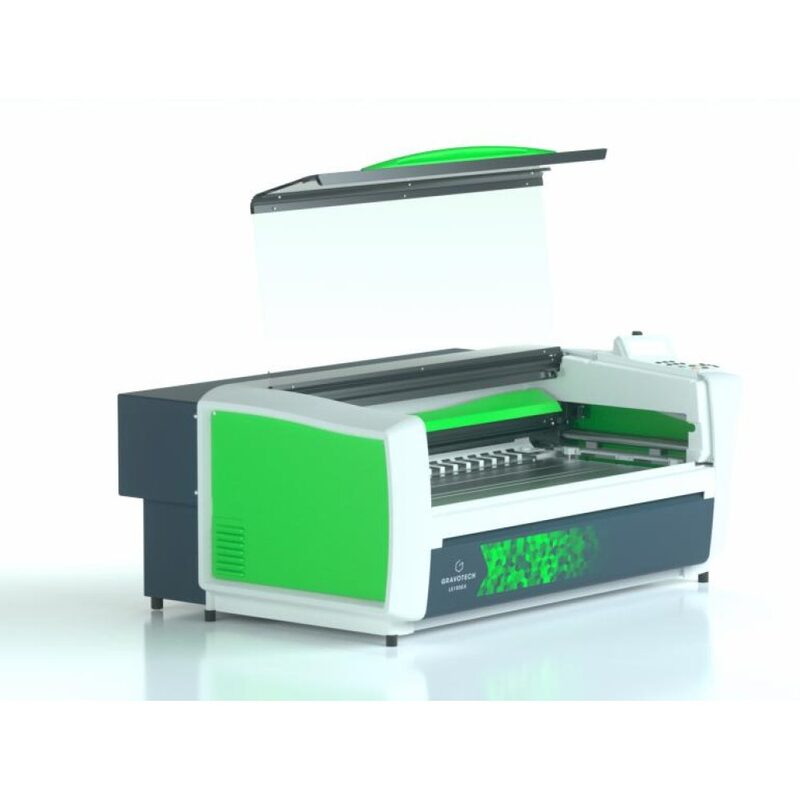

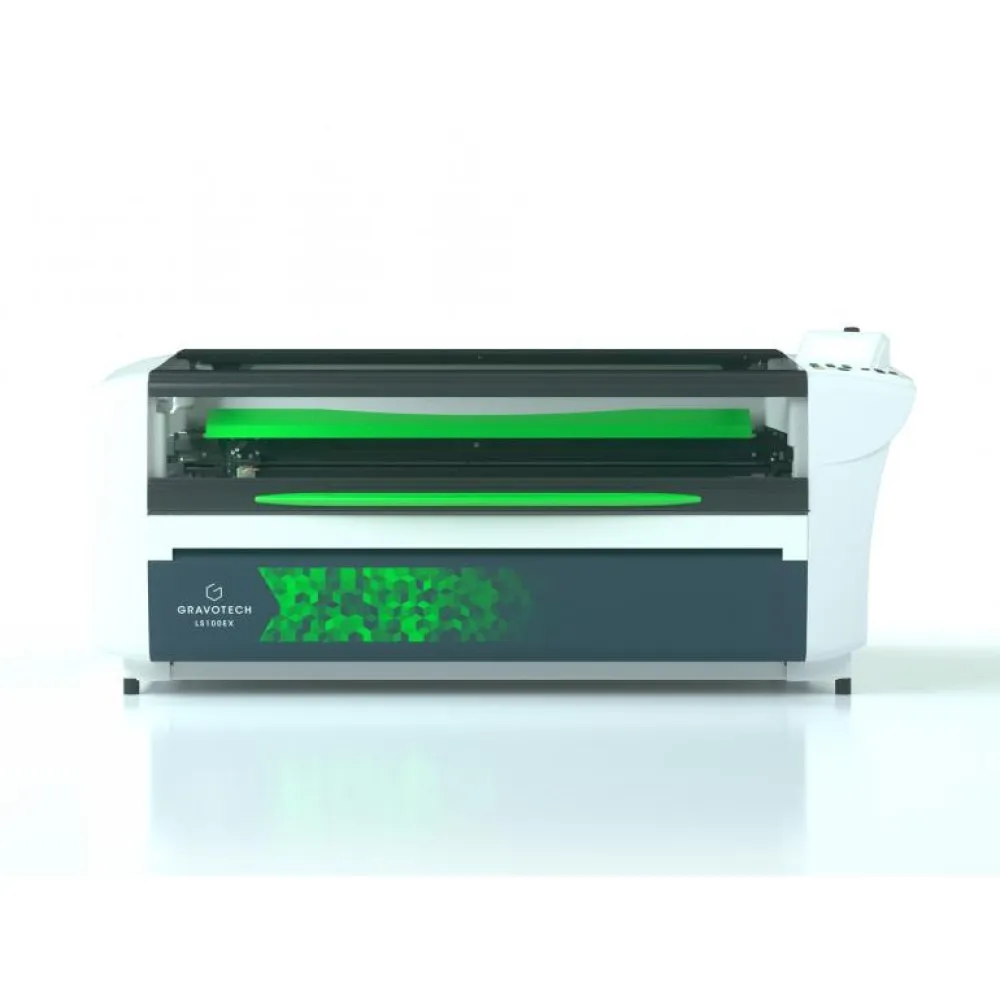

LS100Ex Series
The LS100 EX is a medium laser engraving and cutting machine available in CO2 or Fiber configurations. With a 610 x 305 mm marking area in a 70 kg package, it bridges the gap between the LS100 and LS900. CO2 versions offer 30W to 60W power at 2,540 mm/s; Fiber versions reach 1,500 mm/s. Handles objects up to 140 mm height and 15 kg. Five lens options for versatile engraving and cutting across plastics, wood, glass, organic materials, painted surfaces, and metals (Fiber).
TECHNICAL SPECIFICATIONS
OVERVIEW
The LS100 EX is a medium CO2 or Fiber laser engraving and cutting machine. Serves multiple purposes across personalization, signage, and creative work. Handles both engraving and cutting operations on various material types.
The LS100Ex Series gantry laser system combines the precision of laser technology with the versatility of a large-format flatbed design. Using a CO2 or Fiber Laser source, the machine directs a focused beam across the entire 610 x 305 mm working area to engrave and cut materials with micron-level precision. Unlike mechanical engraving, laser processing is non-contact — there's no tool wear, no clamping force on delicate items, and no vibration that could damage precision components.
From personalized gifts and retail signage to industrial prototypes and architectural models, the LS100Ex Series handles an impressive range of applications. The enclosed Class 2 design includes integrated fume extraction, ensuring safe operation in office, retail, and workshop environments. Gravotech's user-friendly software makes the LS100Ex Series accessible to beginners while offering advanced features like variable power mapping, image engraving, and precise cutting profiles that experienced operators demand.
KEY FEATURES
Non-Contact Processing
Laser engraving and cutting requires no physical contact with the workpiece — no tool wear, no clamping force, and no vibration damage.
CO2 or Fiber Laser Technology
CO2 or Fiber Laser source delivers precise energy control for both delicate surface marking and deep material removal.
Large Work Area
The 610 x 305 mm bed accommodates oversized workpieces and batch production layouts with room to spare.
Enclosed Safety Design
Class 2 laser safety enclosure with integrated fume extraction — safe for office, retail, and educational environments.
Dual Capability
Both engraving and cutting in a single machine — switch between operations without changing equipment.
Autofocus System
Automatic focus adjustment ensures consistent engraving quality across materials of varying thickness without manual intervention.
MATERIAL COMPATIBILITY
Wood & MDF
Clean laser engraving and precision cutting on hardwoods, softwoods, plywood, and MDF for signage and decorative work.
Acrylic & Plastics
Crystal-clear edge cuts on acrylic and detailed surface engraving on ABS, delrin, and engineering plastics.
Glass & Crystal

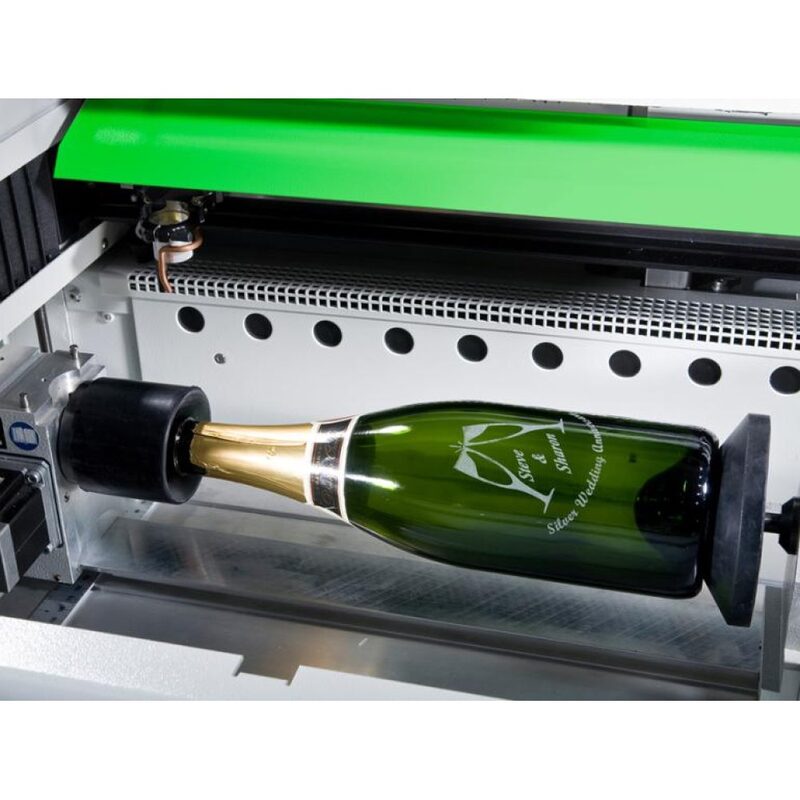

Surface frosting and detailed engraving on flat and curved glass items for awards, gifts, and architectural applications.
Leather & Fabric
Precision engraving and cutting on natural and synthetic leather, felt, and technical textiles.
Metals
Fiber laser marking and annealing on stainless steel, aluminum, brass, and coated metals.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.

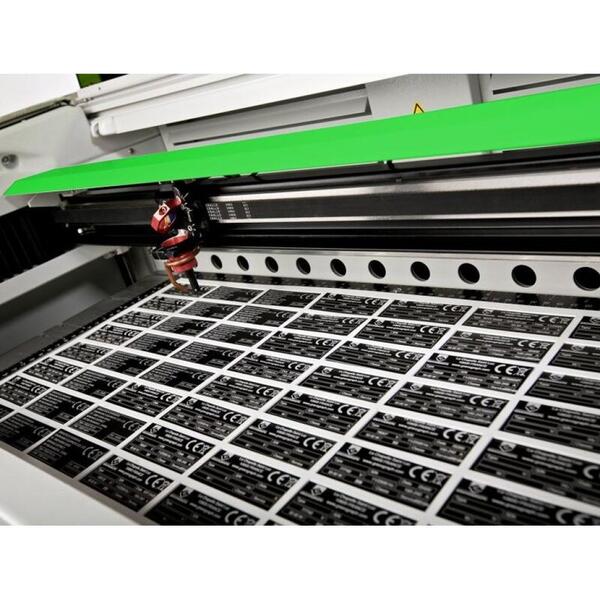

Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech LS100Ex Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The LS100 EX measures 1,025 x 725 x 450 mm (CO2 version) and weighs 70 kg. Available with CO2 (30W/40W/60W at up to 2,540 mm/s) or Fiber laser (up to 1,500 mm/s). The 610 x 305 mm marking area handles objects up to 140 mm height and 15 kg. Same lens options as the LS100 (1.5" to 4.0") with operating temperature 10-35°C. The dual-source availability makes it versatile for both organic material engraving/cutting (CO2) and metal marking (Fiber). Compatible with GravoStyle software with all the same features as the LS100.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the LS100Ex Series?
The LS100Ex Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
