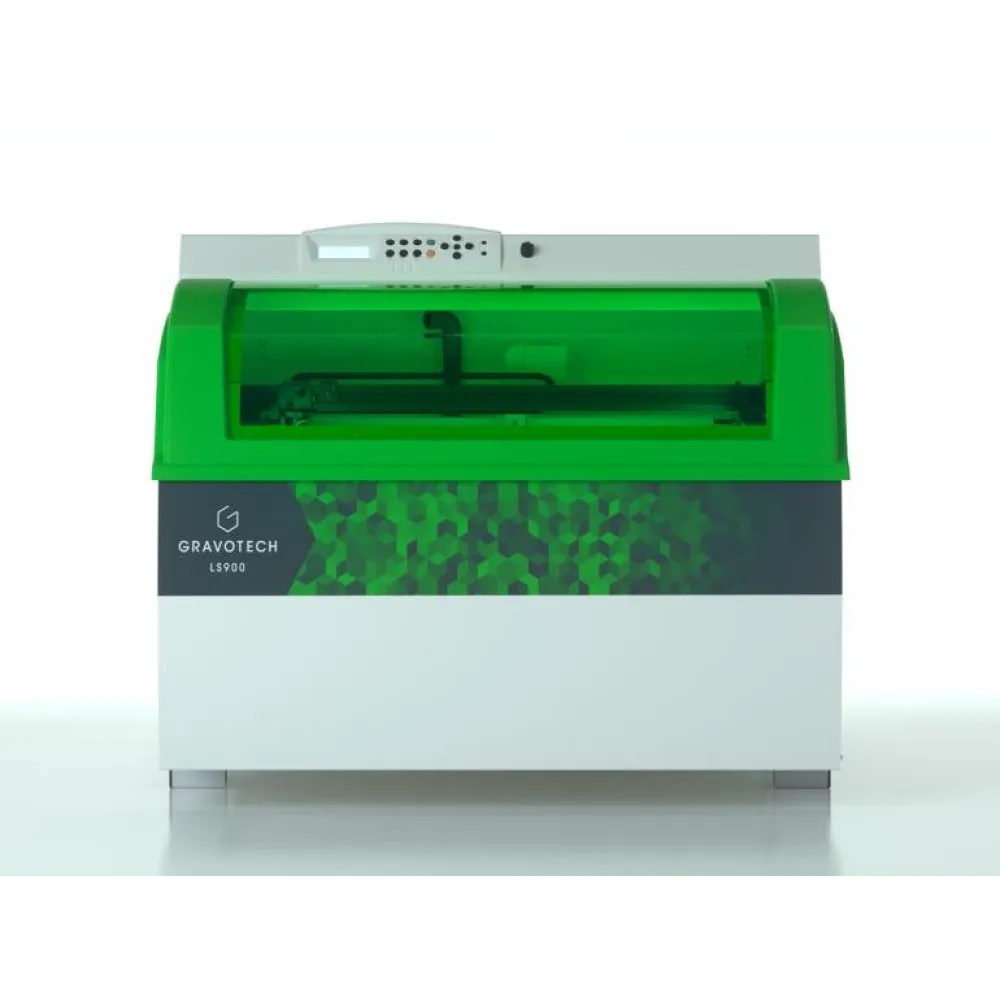

LS900 Series
The LS900 is the flagship large-format laser with a 610 x 610 mm marking area. Available in CO2 (40-80W, 4,000 mm/s), Fiber (20-50W, 1,500 mm/s), and Edge (dual CO2 + Fiber) configurations. Weighing 160-180 kg, it accommodates objects up to 250 mm height and 25 kg. Operates at ≤70-72 dB(A) with CDRH Class 2/2M safety. Deep 250 mm Z-axis clearance, floor stand option, and GravoStyle software for professional signage, creative projects, and industrial production.
TECHNICAL SPECIFICATIONS
OVERVIEW
The LS900 is a large laser engraver and cutter with CO2, Fiber and Edge (CO2 + Fiber) sources. Features a substantial marking area for professional applications with multiple laser source options for material versatility.
The LS900 Series gantry laser system combines the precision of laser technology with the versatility of a large-format flatbed design. Using a CO2, Fiber, Edge (CO2 + Fiber) source, the machine directs a focused beam across the entire 610 x 610 mm working area to engrave and cut materials with micron-level precision. Unlike mechanical engraving, laser processing is non-contact — there's no tool wear, no clamping force on delicate items, and no vibration that could damage precision components.
From personalized gifts and retail signage to industrial prototypes and architectural models, the LS900 Series handles an impressive range of applications. The enclosed Class 2 design includes integrated fume extraction, ensuring safe operation in office, retail, and workshop environments. Gravotech's user-friendly software makes the LS900 Series accessible to beginners while offering advanced features like variable power mapping, image engraving, and precise cutting profiles that experienced operators demand.
KEY FEATURES
Non-Contact Processing
Laser engraving and cutting requires no physical contact with the workpiece — no tool wear, no clamping force, and no vibration damage.
CO2, Fiber, Edge (CO2 + Fiber) Technology
CO2, Fiber, Edge (CO2 + Fiber) source delivers precise energy control for both delicate surface marking and deep material removal.
Large Work Area
The 610 x 610 mm bed accommodates oversized workpieces and batch production layouts with room to spare.
Enclosed Safety Design
Class 2 laser safety enclosure with integrated fume extraction — safe for office, retail, and educational environments.
Dual Capability
Both engraving and cutting in a single machine — switch between operations without changing equipment.
Autofocus System
Automatic focus adjustment ensures consistent engraving quality across materials of varying thickness without manual intervention.
MATERIAL COMPATIBILITY
Wood & MDF
Clean laser engraving and precision cutting on hardwoods, softwoods, plywood, and MDF for signage and decorative work.
Acrylic & Plastics
Crystal-clear edge cuts on acrylic and detailed surface engraving on ABS, delrin, and engineering plastics.
Glass & Crystal
Surface frosting and detailed engraving on flat and curved glass items for awards, gifts, and architectural applications.
Leather & Fabric
Precision engraving and cutting on natural and synthetic leather, felt, and technical textiles.
Metals
Fiber laser marking and annealing on stainless steel, aluminum, brass, and coated metals.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech LS900 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The LS900 measures 945 x 1,080 x 810 mm and weighs 160-180 kg depending on configuration. Available in CO2 (40W/60W/80W at up to 4,000 mm/s), Fiber (20W/30W/50W at up to 1,500 mm/s), and Edge (dual CO2 + Fiber) configurations. The 610 x 610 mm marking area with 250 mm Z-axis clearance handles objects up to 25 kg. Beam diameter ranges from 0.1 to 0.4 mm. Noise levels are ≤72 dB(A) for CO2 and ≤70 dB(A) for Fiber. CDRH Class 2 (CO2) or Class 2M (Fiber) safety. Operating temperature 10-35°C. Floor stand available. The Edge configuration enables multi-material production without switching machines.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the LS900 Series?
The LS900 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
What is the expected lifetime of the laser source?
Fiber laser sources typically exceed 100,000 hours of operation — effectively maintenance-free for the life of the machine.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
