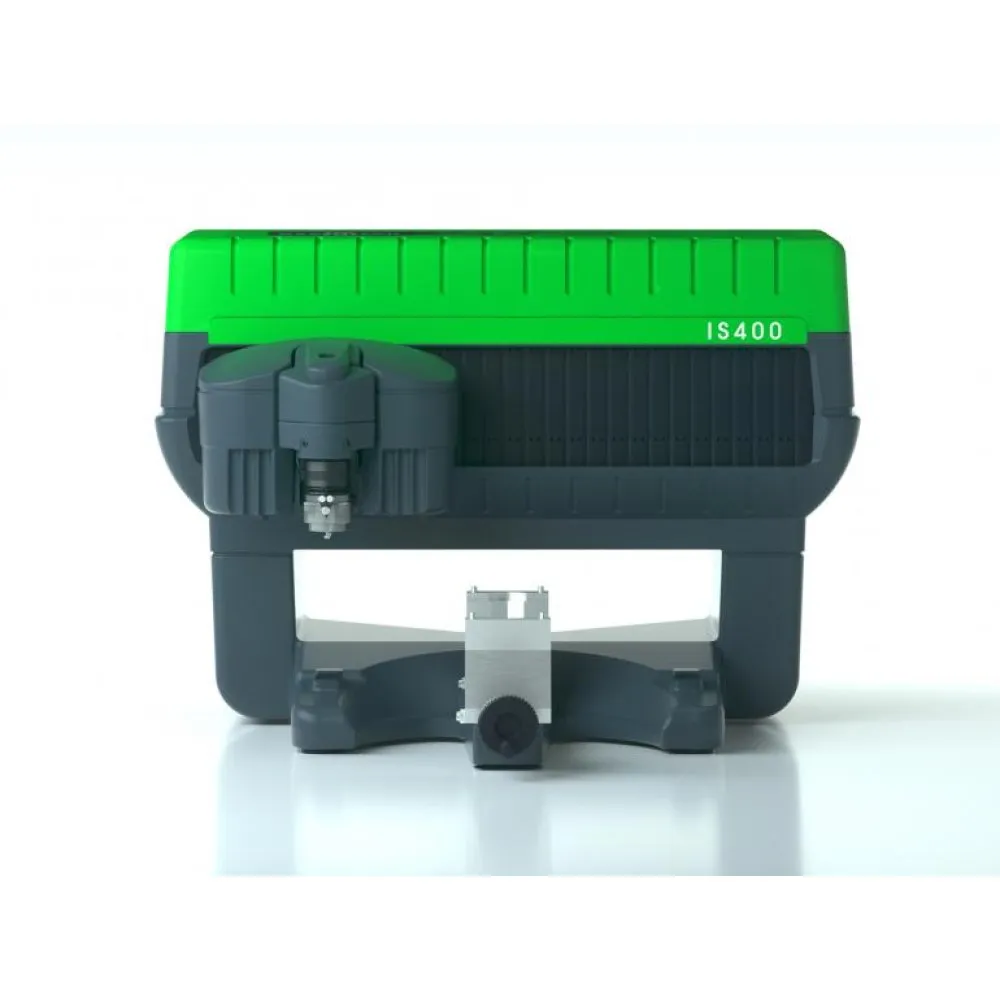

IS400 Series
The IS400 is a stable, versatile CNC engraving machine with over 10,000 units sold worldwide. Its solid cast aluminum frame houses a 90W spindle (150W optional) reaching 20,000 rpm variable speed. The 305 x 210 mm marking area handles objects up to 20 kg and 105 mm height. CE certified with a 40 mm Z stroke, it marks everything from the softest plastic (PEHD) to hardest metals (steel). Supports flat and cylindrical engraving for trophies, ADA signage, industrial parts, and deep marking applications.
TECHNICAL SPECIFICATIONS
OVERVIEW
The IS400 is a medium-format CNC engraving machine designed for versatile marking applications. Accommodates both flat and cylindrical engraving on various materials, supporting personalization, identification, signage, and creative applications.
The IS400 Series is engineered for professional workshops and manufacturing environments that demand reliability, precision, and the ability to handle large-format work. With a 305 x 210 mm marking area, this CNC engraving table handles everything from single custom pieces to large batch production runs across plastics, metals, and organic materials. The heavy-duty construction and industrial-grade components ensure consistent performance across thousands of operating hours.
Integration with Gravotech's Gravostyle software provides a complete design-to-production workflow. Import designs from standard CAD formats, set up tool paths, and execute multi-pass engraving operations with precise depth control. The IS400 Series supports a wide range of cutters and accessories including cylindrical attachments, vacuum tables, and automatic tool changers — enabling you to configure the machine for your specific production requirements. SOFRAY EMS provides full installation, operator training, and ongoing technical support throughout the GCC region.
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full 305 x 210 mm marking area.
Multi-Material Capability
Engrave on Plastics, metals, organic materials (glass, wood) with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS
Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech IS400 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The IS400 measures 893 x 610 x 435 mm and weighs 42 kg with a solid cast aluminum frame for the highest precision in its class. The 90W spindle (150W optional) operates at 11,000-20,000 rpm variable speed with ball-bearing lead screws. The 305 x 210 mm marking area handles objects up to 105 mm height and 20 kg, with unlimited length and 230 mm width. Z stroke is 40 mm. Noise levels range from 72 to 95 dB depending on material and operation. The IS400 Volume variant (900 x 615 x 840 mm, 90 kg) adds 400 mm object height capability with no switching between flat and cylindrical engraving modes. Drive options include heavy-duty spring-loaded gripper or high-frequency spindle with collet. CE certified. Compatible with Gravostyle (including GravoStyle Discovery as standard) and ABC software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the IS400 Series?
The IS400 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
