IS6000 Series
The IS6000 is a large-format CNC engraving machine with a 610 x 410 mm marking area. Weighing 168 kg, it handles objects up to 40 kg. Available with 90W or 200W spindles (750W and 1 kW options), with IQ (stepper) or XP (DC motor) drive technologies. The XP Milling version includes an automatic tool changer for industrial cutting. ADA/Braille certified and EMC compliant for professional signage, creative projects, and manufacturing applications.
TECHNICAL SPECIFICATIONS
OVERVIEW
The IS6000 is a large-format CNC engraving machine designed for professional signage, creative projects, and manufacturing applications. Versatile for diverse engraving needs across multiple industries.
The IS6000 Series is engineered for professional workshops and manufacturing environments that demand reliability, precision, and the ability to handle large-format work. With a 610 x 410 mm marking area, this CNC engraving table handles everything from single custom pieces to large batch production runs across plastics, metals, and organic materials. The heavy-duty construction and industrial-grade components ensure consistent performance across thousands of operating hours.
Integration with Gravotech's Gravostyle software provides a complete design-to-production workflow. Import designs from standard CAD formats, set up tool paths, and execute multi-pass engraving operations with precise depth control. The IS6000 Series supports a wide range of cutters and accessories including cylindrical attachments, vacuum tables, and automatic tool changers — enabling you to configure the machine for your specific production requirements. SOFRAY EMS provides full installation, operator training, and ongoing technical support throughout the GCC region.
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full 610 x 410 mm marking area.
Multi-Material Capability
Engrave on Plastics, metals, organic materials (glass, wood) with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS

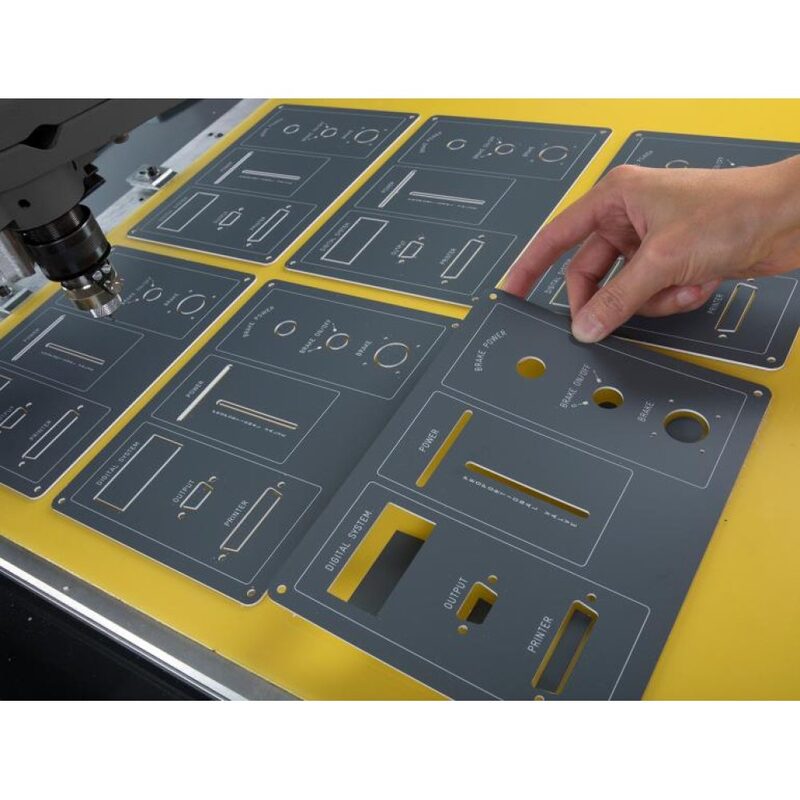

Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Oil & Gas Identification
Deep, permanent marking on pipes, flanges, valves, and heavy equipment that withstands extreme heat, pressure, and chemical exposure.
Medical Device Marking
UDI-compliant marking on surgical instruments, implants, and medical devices meeting FDA 21 CFR and EU MDR requirements.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech IS6000 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The IS6000 measures 1092 x 1013 x 734 mm and weighs 168 kg. The 610 x 410 mm marking area handles objects up to 80 mm height and 40 kg. Standard spindle power is 90W or 200W with optional 150W, 750W, or 1 kW configurations. The XP Milling version features a 1,000W high-frequency spindle with automatic tool changer for industrial cutting. Two drive technologies: IQ (stepper motors for precise positioning) or XP (DC motors for higher travel speeds). Supports rotary and diamond engraving with top-loading, collet, or high-frequency spindle configurations. ADA/Braille certified and EMC compliant. Compatible with Gravostyle including Braille, Photostyle, and Print & Cut features.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the IS6000 Series?
The IS6000 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
