IS7000 Series
The IS7000 expands on the IS6000 with a 610 x 815 mm extra-large marking area. At 220 kg, it handles objects up to 40 kg. Available with 90W or 200W spindles (750W and 1 kW options), with IQ (stepper) or XP (DC motor) drive technologies. Features the same automatic tool changer option and ADA/Braille certification as the IS6000. Designed for large matrix layouts, extended control panels, and high-volume signage production.
TECHNICAL SPECIFICATIONS
OVERVIEW

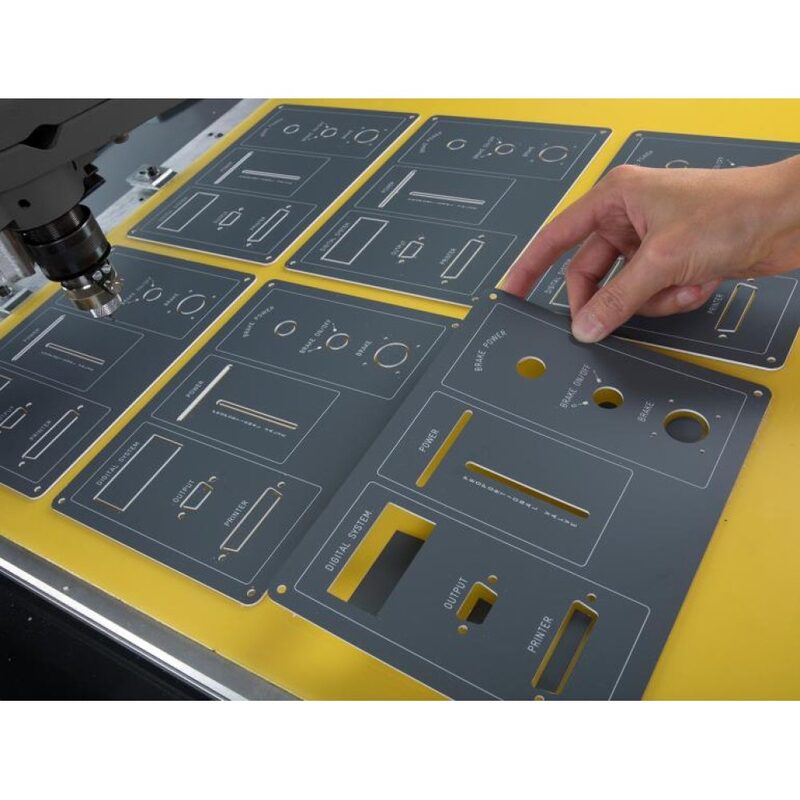

The IS7000 expands on the IS6000 with an extra-large format bed designed for professional signage, creative projects, and manufacturing applications. Handles large matrix layouts and extended control panels.
The IS7000 Series is engineered for professional workshops and manufacturing environments that demand reliability, precision, and the ability to handle large-format work. With a 610 x 815 mm marking area, this CNC engraving table handles everything from single custom pieces to large batch production runs across plastics, metals, and organic materials. The heavy-duty construction and industrial-grade components ensure consistent performance across thousands of operating hours.
Integration with Gravotech's Gravostyle software provides a complete design-to-production workflow. Import designs from standard CAD formats, set up tool paths, and execute multi-pass engraving operations with precise depth control. The IS7000 Series supports a wide range of cutters and accessories including cylindrical attachments, vacuum tables, and automatic tool changers — enabling you to configure the machine for your specific production requirements. SOFRAY EMS provides full installation, operator training, and ongoing technical support throughout the GCC region.
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full 610 x 815 mm marking area.
Multi-Material Capability
Engrave on Plastics, metals, organic materials (glass, wood) with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS
Professional Signage
Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech IS7000 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The IS7000 measures 1092 x 1420 x 734 mm and weighs 220 kg. The 610 x 815 mm marking area is the extended format option in the ISx000 series, handling objects up to 80 mm height and 40 kg. Same spindle options as the IS6000: 90W/200W standard, up to 1 kW optional. Available in IQ (stepper) or XP (DC motor) drive configurations. The XP Milling version includes automatic tool changer for intensive milling and cutting. ADA/Braille certified and EMC compliant. Ideal for large signage, batch labeling, and 2.5D milling applications.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the IS7000 Series?
The IS7000 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
