M10 Jewel
The M10 Jewel is the smallest jewelry engraving machine in the range, with an A4-sheet footprint (230 x 293 mm) weighing just 6.5 kg. Uses diamond engraving (non-rotating tip) for quiet operation at only 60 dB with 0.05 mm precision. Automatically adjusts on the Z-axis for exact results. Handles ring widths from 1.5 to 8 mm and diameters from 12.5 to 25 mm. Engraves on gold, silver, copper, brass, steel, wood, and plastic. Features optional Dedicace technology for reproducing handwritten messages, signatures, or drawings.
TECHNICAL SPECIFICATIONS
OVERVIEW

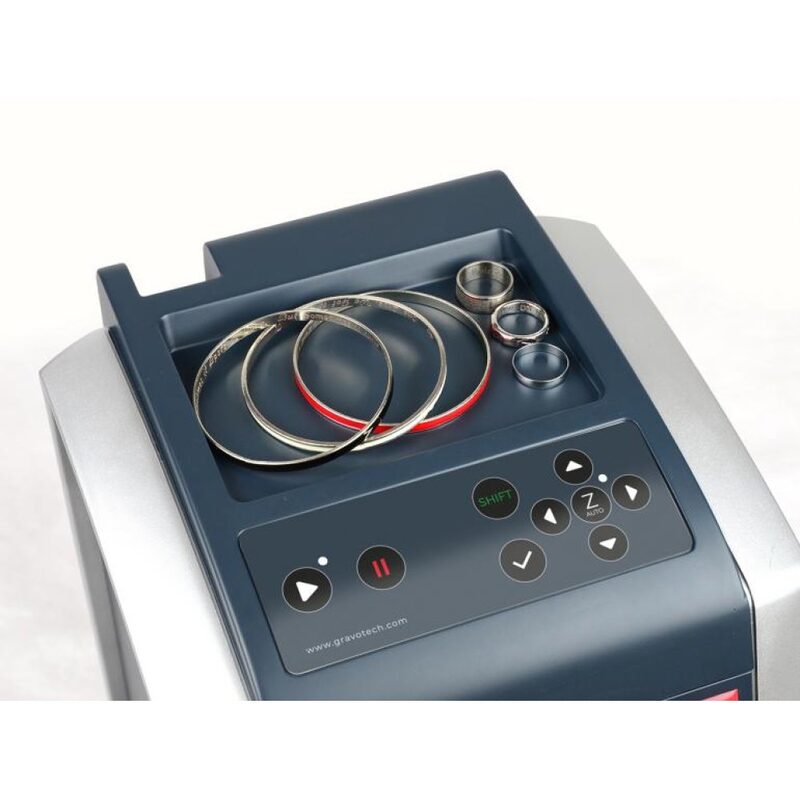

The Gravotech M10 Jewel is a specialized jewelry engraving machine with a footprint the size of an A4 sheet — just 230 x 293 mm — and weighing only 6.5 kg. It's one of the lightest engraving machines on the market, purpose-built for inside and outside ring engraving, bangles, wedding bands, charms, and bracelets.
Unlike rotary engraving machines with spinning spindles, the M10 Jewel uses diamond engraving technology where the diamond tip does not rotate. This non-rotating scribing approach is remarkably quiet at just 60 dB — fully compatible with commercial activity environments such as jewelry stores and shopping centers. The diamond tip automatically adjusts on the Z-axis for exact and reliable engraving results with precision down to 0.05 mm.

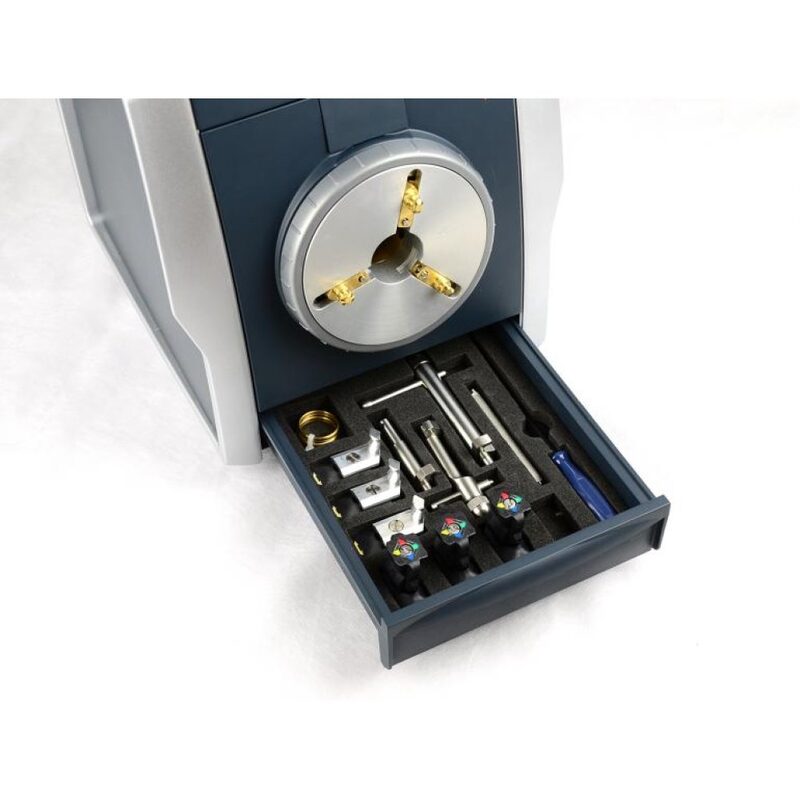

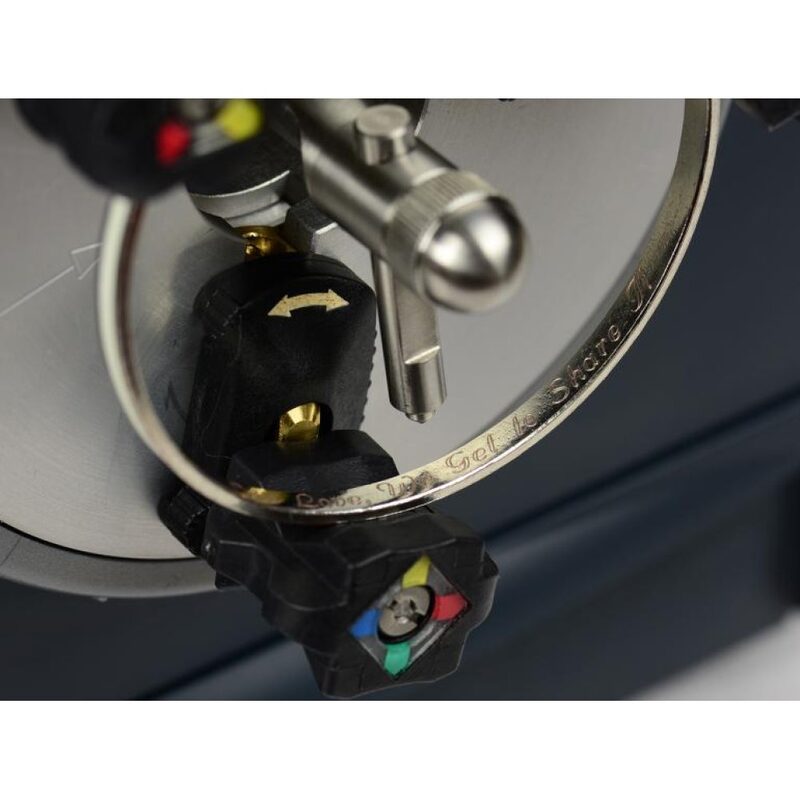

The jewelry cutter is fitted with 3 jaws around the moving diamond tip, with 4 positions to match jewel diameter and shape. Ring width capacity ranges from 1.5 to 8 mm with item diameters from 12.5 to 25 mm. The M10 Jewel engraves on gold, silver, copper, brass, steel, wood, and plastic — covering virtually all jewelry materials.
An optional patented technology called Dedicace enables the M10 Jewel to reproduce handwritten messages, signatures, or drawings made on a specially designed tablet, adding a deeply personal touch to jewelry pieces. The machine connects via USB with optional Bluetooth for wireless communication. Compatible with ABC software (auto-centering and simulation before engraving) and Gravostyle (unlimited personalization).
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full marking area.
Multi-Material Capability
Engrave on Metals with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Jewelry Engraving
Inside ring engraving, pendant personalization, hallmarking, and decorative pattern work on precious metals and gemstone settings.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech M10 Jewel supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The M10 Jewel has a footprint of just 230 x 293 mm (the size of an A4 sheet) and weighs only 6.5 kg — one of the lightest engraving machines on the market. The diamond engraving tip does not rotate like a spindle; instead it scribes quietly at just 60 dB, compatible with commercial activity environments. Maximum engraving precision is 0.05 mm. The jewelry cutter features 3 jaws with 4 positions around the moving diamond tip to match jewel diameter and shape. Ring width capacity ranges from 1.5 to 8 mm with item diameters from 12.5 to 25 mm. The Z-axis adjusts automatically for exact and reliable results. The optional Dedicace technology (patented by Gravotech) reproduces handwritten messages, signatures, or drawings from a specially designed tablet. Connected via USB with optional Bluetooth. Compatible with ABC (auto-centering, simulation before engraving) and Gravostyle (unlimited personalization).
FREQUENTLY ASKED QUESTIONS
What warranty comes with the M10 Jewel?
The M10 Jewel comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
