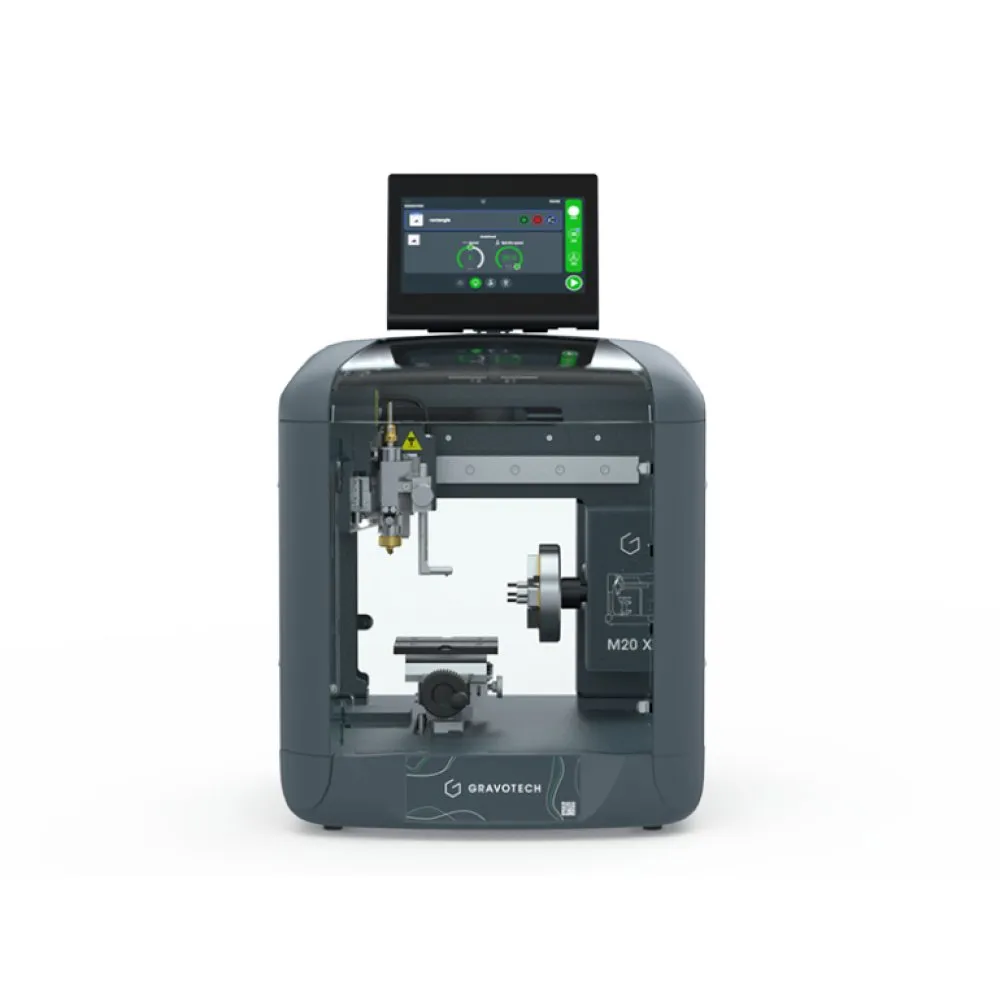

M20 X Jewel
The M20 X Jewel is a compact, portable engraving machine dedicated to jewelry. With a 30W spindle and 100 x 100 mm marking area, it handles inside and outside ring engraving, pendants, and personalized gifts. Its touchscreen guides operators step by step. Cuts traditional jewelry metals up to 2 mm thick including gold, silver, brass, stainless steel, pewter, and aluminum. Also works with wood, glass, leather, marble, crystal, ceramic, and acrylic. Built-in Wi-Fi, USB, and Ethernet for seamless computer and tablet integration.
TECHNICAL SPECIFICATIONS
OVERVIEW
The M20 X Jewel is a small and portable engraving machine designed specifically for the jewelry market. Compact rotary engraving system that accommodates cylindrical items, enabling personalization and creative applications. Suitable for jewelry workshops and retail environments.
As part of Gravotech's compact rotary engraving range, the M20 X Jewel combines proven mechanical engraving technology with modern CNC control for consistent, repeatable results. The machine's 100 x 100 mm marking area accommodates a wide range of workpiece sizes, while its ability to handle materials from soft plastics to hard metals makes it a versatile addition to any personalization or signage workshop. Whether you're engraving a single bespoke piece or running a batch of identical items, the M20 X Jewel delivers the precision and reliability that Gravotech is known for.
Designed for environments where space is at a premium, the M20 X Jewel fits comfortably on a standard workbench while delivering capabilities that rival much larger machines. Its quiet operation makes it suitable for front-of-house retail locations, jewelry workshops, and educational institutions. Paired with Gravotech's Gravostyle or ABC software, operators can go from design to finished product in minutes — no specialized training required.
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full 100 x 100 mm marking area.
Multi-Material Capability
Engrave on Plastics, metals, organic materials (glass, wood) with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Cylindrical Engraving
Built-in support for cylindrical items from 12.5 to 27 mm — rings, bangles, pens, and small bottles.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS
Luxury Retail Personalization
Engrave names, dates, and messages on perfume bottles, leather goods, jewelry, and premium accessories for an unforgettable customer experience.
Jewelry Engraving

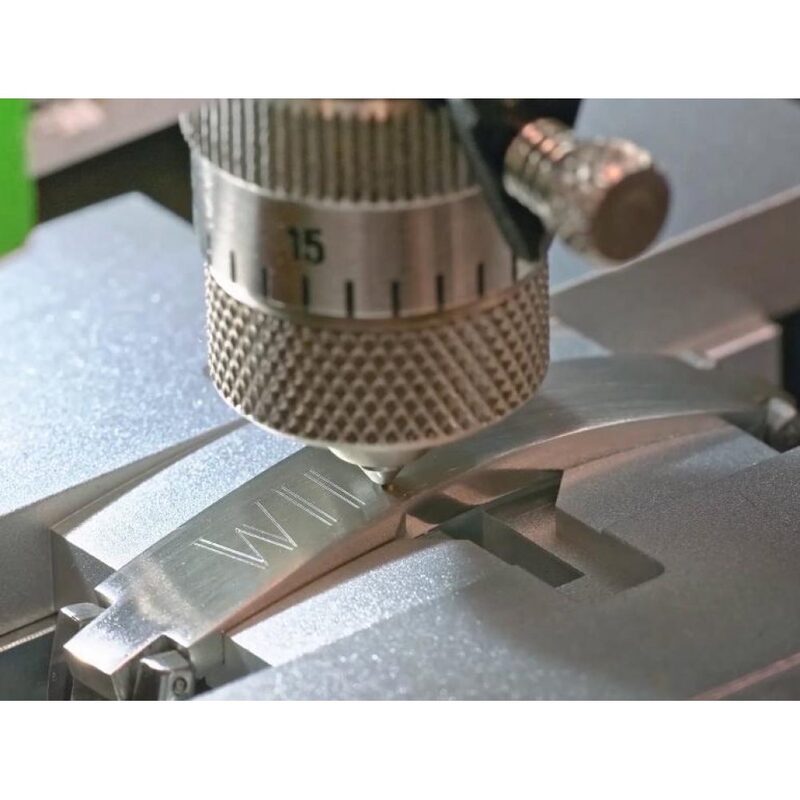

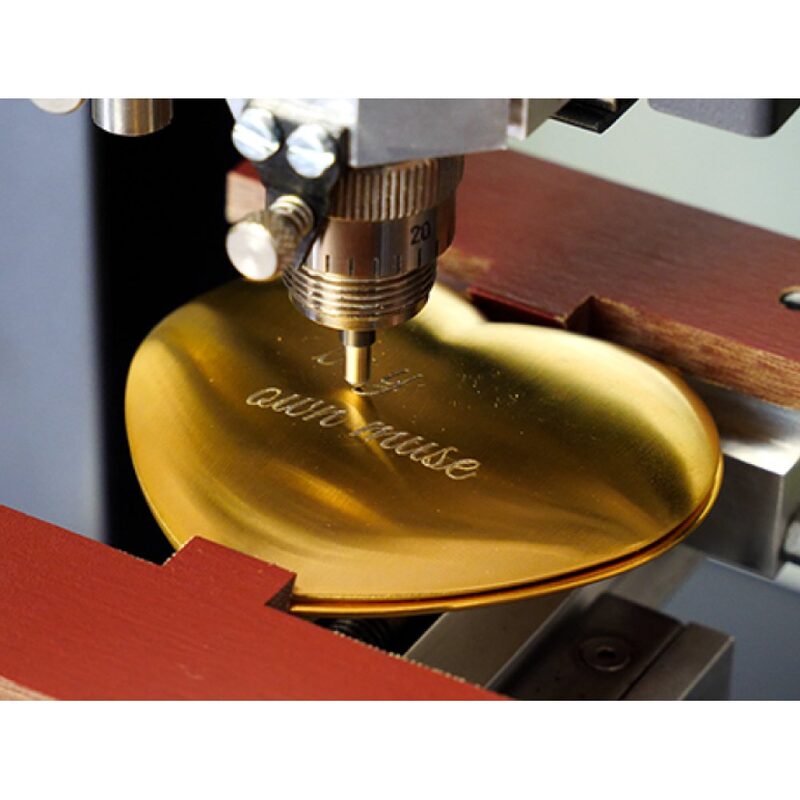

Inside ring engraving, pendant personalization, hallmarking, and decorative pattern work on precious metals and gemstone settings.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech M20 X Jewel supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS
The M20 X Jewel measures 363 x 368 x 350 mm and weighs 12.9 kg gross. The 30W spindle handles flat and cylindrical jewelry engraving with a 100 x 100 mm marking area. Maximum item diameter is 27 mm with object height up to 100 mm. The touchscreen guides operators step by step through inside and outside ring engraving, pendant marking, and photo/logo reproduction. Built-in Wi-Fi, USB, and Ethernet connectivity enables integration with computers and tablets. Compatible with Gravostyle and ABC software including specialized jewelry engraving fonts. Can cut traditional jewelry metals including gold, silver, brass, and stainless steel up to 2 mm thick.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the M20 X Jewel?
The M20 X Jewel comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
