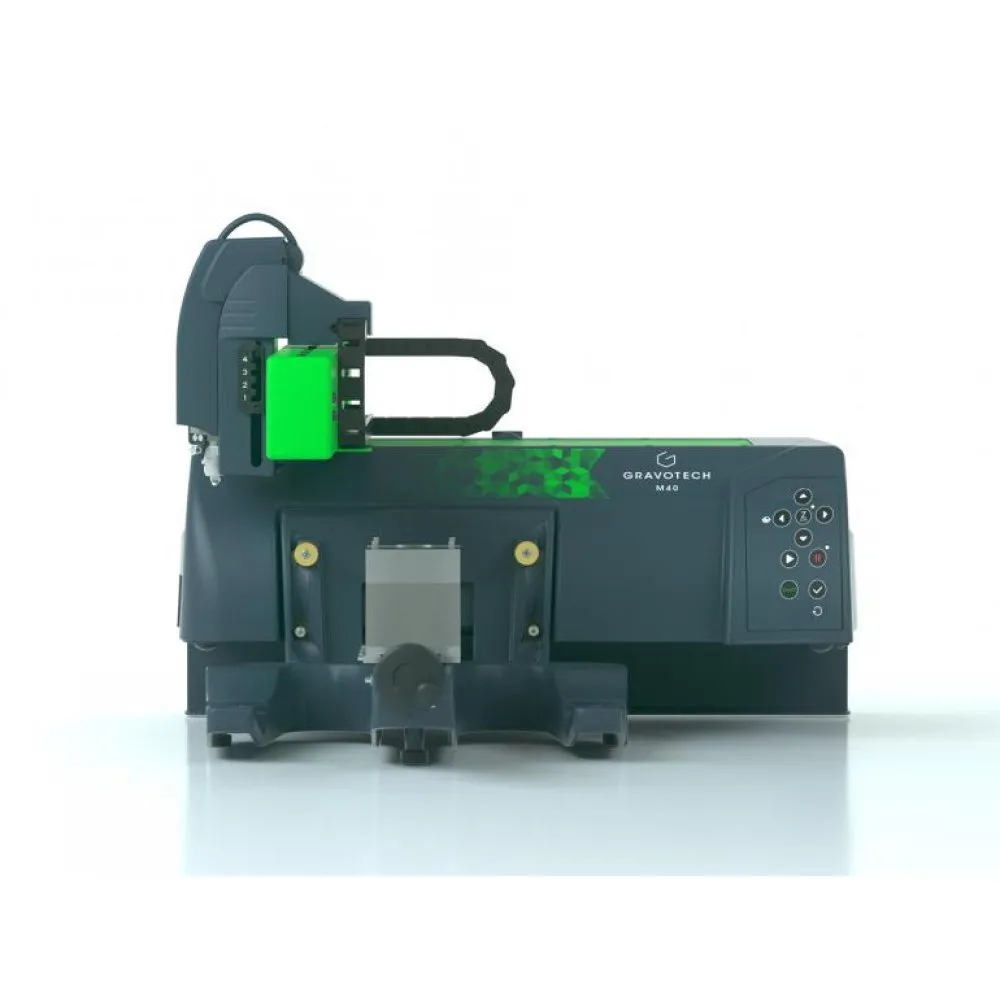

M40 Series
The M40 is a medium multi-purpose rotary engraving machine with a generous 305 x 210 mm marking area. Powered by a 50W direct-drive spindle at 20,000 rpm with a 4.36 mm diameter, it delivers clean, smooth finishes. Weighing 18 kg, the M40 features an open structure for oversized items, integrated laser pointer for error-free positioning, automatic Z reference for effortless cutter setup, and auto-centering jig. Handles plastics, metals, glass, wood, and organic materials for signage, identification, personalization, and gift engraving.
TECHNICAL SPECIFICATIONS
OVERVIEW
The M40 is a medium multi-purpose rotary engraving machine for signage and gifts. A versatile solution for businesses requiring reliable engraving capabilities across multiple material types. Modular and cost-effective for small to medium-scale operations.
As part of Gravotech's compact rotary engraving range, the M40 Series combines proven mechanical engraving technology with modern CNC control for consistent, repeatable results. The machine's 305 x 210 mm marking area accommodates a wide range of workpiece sizes, while its ability to handle materials from soft plastics to hard metals makes it a versatile addition to any personalization or signage workshop. Whether you're engraving a single bespoke piece or running a batch of identical items, the M40 Series delivers the precision and reliability that Gravotech is known for.
Designed for environments where space is at a premium, the M40 Series fits comfortably on a standard workbench while delivering capabilities that rival much larger machines. Its quiet operation makes it suitable for front-of-house retail locations, jewelry workshops, and educational institutions. Paired with Gravotech's Gravostyle or ABC software, operators can go from design to finished product in minutes — no specialized training required.
KEY FEATURES
Precision CNC Control
Computer-controlled engraving delivers consistent, repeatable results with positioning accuracy down to 0.01 mm across the full 305 x 210 mm marking area.
Multi-Material Capability
Engrave on Plastics, metals, organic materials (glass, wood) with appropriate tooling — one machine handles virtually any substrate.
Professional Software Suite
Compatible with Gravostyle (full CAD/CAM) and ABC (simplified 3-step) software for operators of all skill levels.
Robust Construction
Industrial-grade cast aluminum frame with precision guide rails and ball-screw drives for long-term reliability and accuracy.
Low Maintenance
Simple mechanical design with minimal consumables. Only replacement cutters are needed — no laser tubes, gases, or complex calibration.
MATERIAL COMPATIBILITY
Engraving Plastics
Two-layer and multi-layer laminates (ABS, acrylic) in 80+ color combinations for signage, badges, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, tags, and industrial identification.
Organic Materials
Wood, glass, leather, and other natural materials for decorative and personalization applications.
APPLICATIONS
Professional Signage

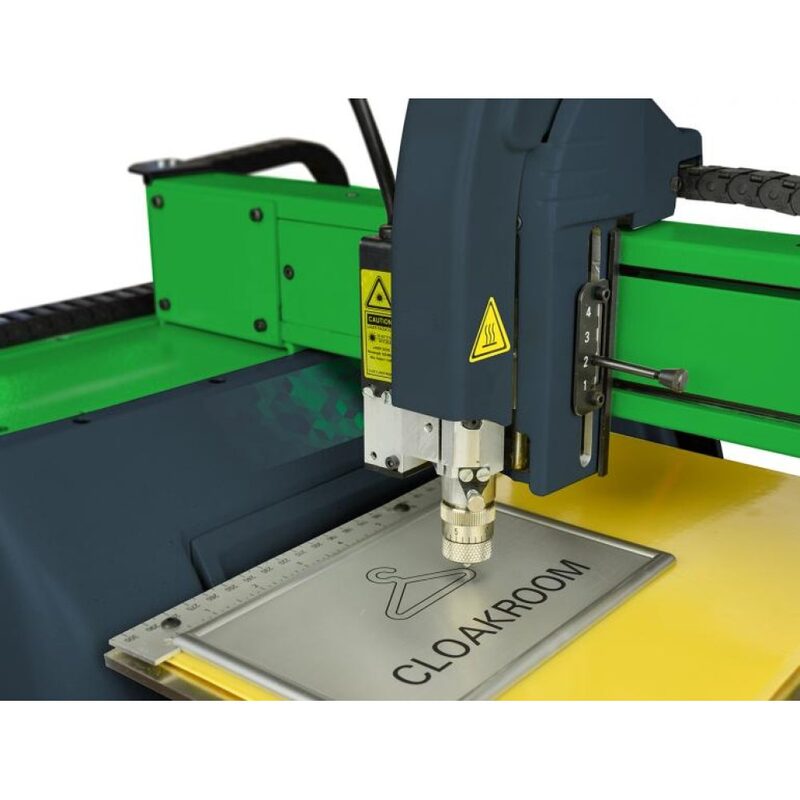

Produce durable indoor and outdoor signs, wayfinding systems, safety labels, and architectural signage in a wide range of materials and colors.
Industrial Traceability
Mark serial numbers, DataMatrix codes, and production data on components for full lifecycle traceability in manufacturing and assembly.
Education & Training
Safe, versatile equipment for university fablabs, technical schools, and vocational training centers teaching design and manufacturing.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Genuine Gravotech M40 Series supplied and supported by SOFRAY EMS — the authorized distributor for the entire GCC region
Local support team based in Dubai with engineers available for on-site installation, training, and maintenance across UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman
Comprehensive after-sales service including preventive maintenance contracts, warranty extensions, and 24/7 technical support
Over 20 years of industry experience helping businesses across the Middle East select and deploy the right engraving and marking solutions
Complete solution package: machine, software, training, consumables, and ongoing support — everything you need to start producing from day one
TECHNICAL DETAILS

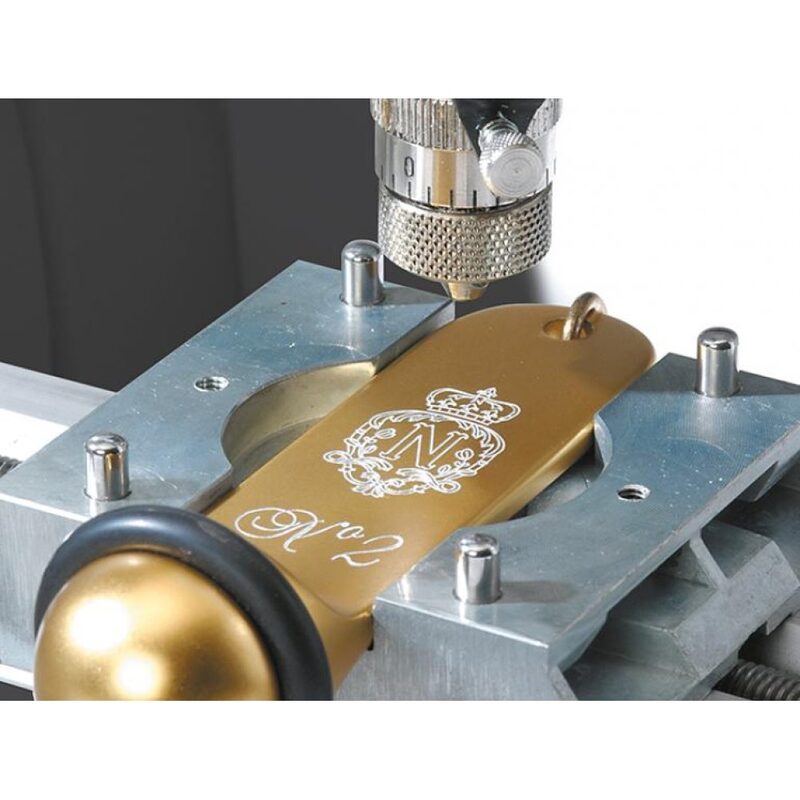

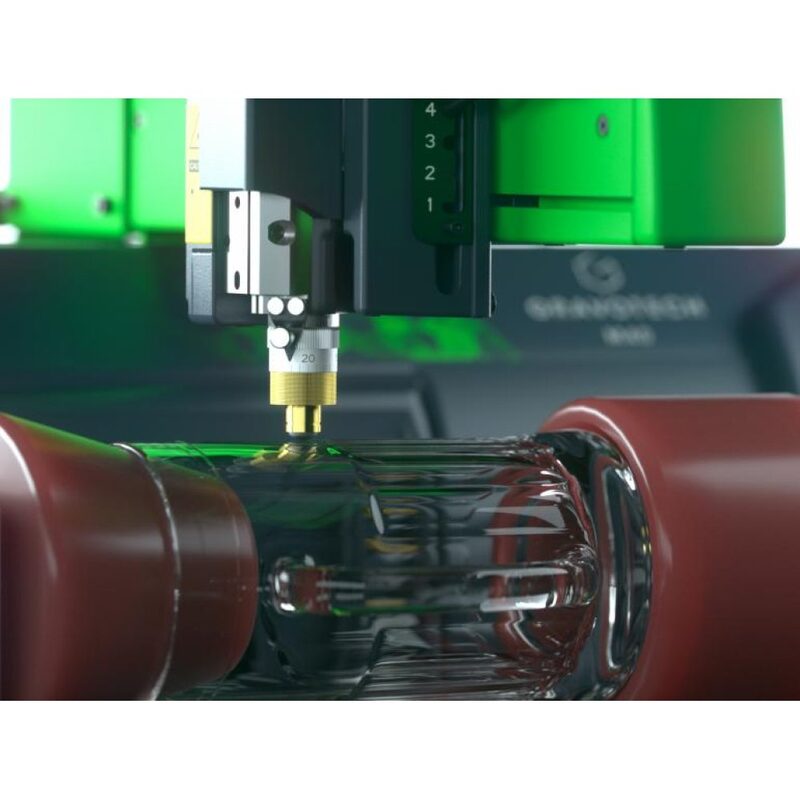

The M40 measures 550 x 510 x 320 mm and weighs 18 kg. The high-powered 50W direct-drive spindle reaches 20,000 rpm with a 4.36 mm diameter for stable performance and higher precision. The 305 x 210 mm marking area benefits from an open structure allowing larger items when needed. Machine engraving clearance is 40 mm (1.57 in) with maximum object height of 110 mm (4.33 in). The integrated laser pointer (Point & Shoot) ensures error-free item placement while automatic Z reference provides effortless cutter setup. The self-centering vice clamp is 4.5 inches deep. The M40 Gift variant includes an automatic lubricant tank and tilting rotary device for glasses, bottles, and conical items. Power is standard 120V. Compatible with Gravostyle (including Braille, Photostyle, Print & Cut) and ABC software.
FREQUENTLY ASKED QUESTIONS
What warranty comes with the M40 Series?
The M40 Series comes with Gravotech's standard manufacturer warranty. SOFRAY EMS also offers extended warranty options up to 5 years and comprehensive service contracts including preventive maintenance. Contact us for details.
Do you provide installation and training?
Yes. SOFRAY EMS provides complete on-site installation, commissioning, and operator training as part of every machine purchase. Our engineers are based in Dubai and travel throughout the GCC for installations.
Can you provide samples before purchase?
Absolutely. Send us your materials and we will produce sample markings at our Dubai showroom so you can evaluate the quality before committing. We also offer live demonstrations by appointment.
Do you deliver across the GCC?
Yes. SOFRAY EMS delivers and installs equipment across all GCC countries: UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman. We also supply consumables and spare parts with expedited shipping.
