M20 Series
The M20 X is a compact, versatile CNC engraving machine weighing 12.9 kg with a 30W spindle reaching 19,200 rpm. Its 100 x 100 mm marking area handles personalization on plastics, metals, glass, and wood. Features a 7-inch touchscreen with step-by-step guidance, automatic Z-axis adjustment, Point & Shoot positioning, and built-in Wi-Fi, USB, and Ethernet connectivity. Compatible with 25+ jigs and driven by Gravostyle or ABC software for everything from perfume bottles to small industrial signage.
TECHNICAL SPECIFICATIONS
OVERVIEW

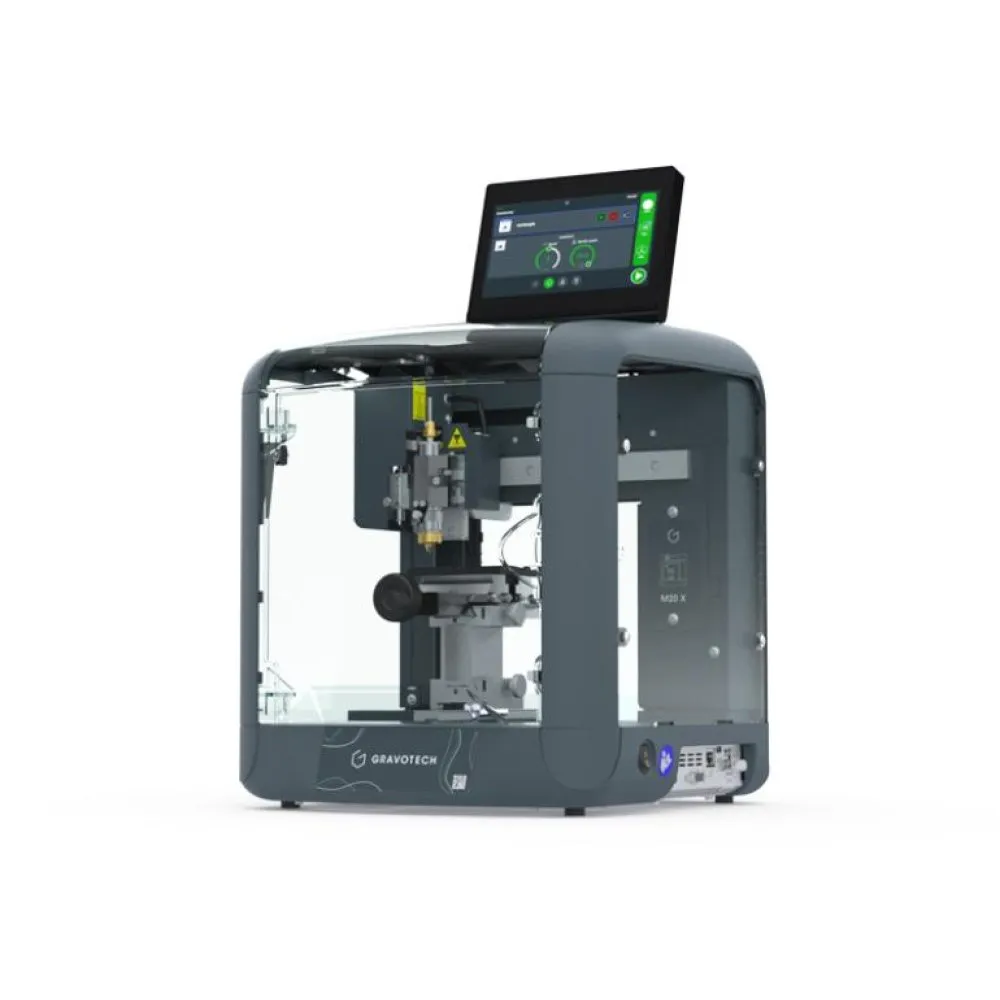

The Gravotech M20 X is a compact, computer-controlled rotary engraving machine that packs professional capabilities into a remarkably small footprint. Measuring 375 x 550 x 408 mm and weighing just 12.9 kg, it's designed for businesses that need versatile, on-demand engraving capabilities — from luxury boutiques and jewelry workshops to small manufacturing facilities.
The M20 X is powered by a 30W spindle with a speed range from 4 to 19,200 rpm, and features X, Y, and Z axes equipped with ball screws for consistent and accurate engraving. Its 100 x 100 mm marking area is perfectly sized for personalization work: perfume bottle caps, jewelry, small plaques, pen barrels, Swiss army knives, tableware, and gift items. The machine handles cylindrical items from 12.5 to 27 mm diameter with maximum object height of 100 mm.

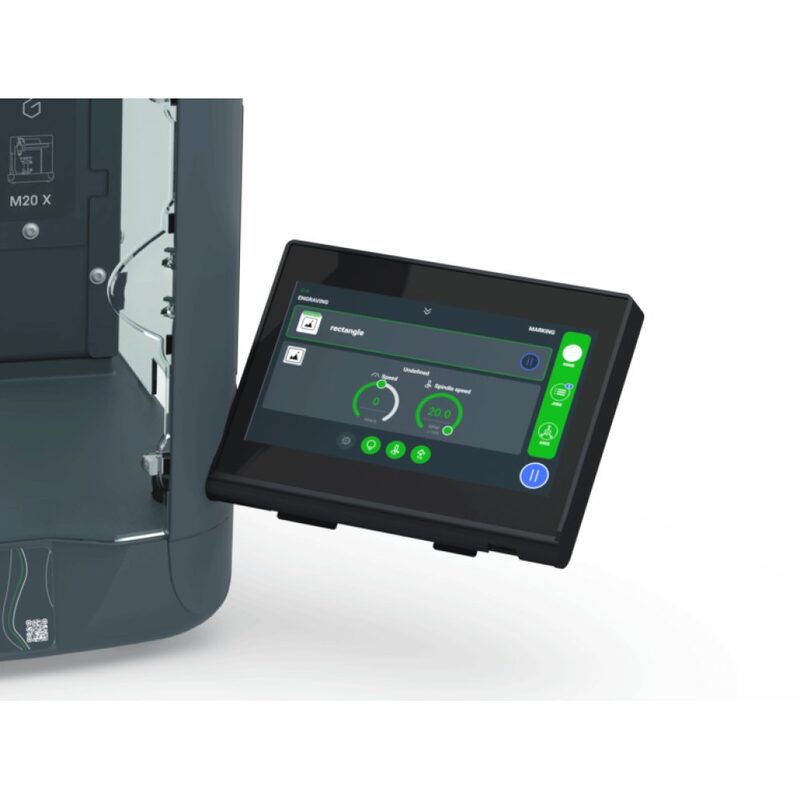

A 7-inch touchscreen guides operators through the engraving process step by step, making the M20 X accessible to users of all skill levels. Point & Shoot precision positioning, automatic Z-axis adjustment, and surface tracking ensure professional results every time. Built-in Wi-Fi, USB, and Ethernet connectivity enable seamless integration with computers and tablets.
Driven by Gravostyle (professional engraving and cutting software) or ABC (simple 3-step engraving), the M20 X supports more than 25 compatible jigs. Options include a cutting table and Gravogrip table for expanded capabilities. The machine's transparent casing reduces noise, making it suitable for front-of-house retail environments.
KEY FEATURES
Compact Desktop Footprint
Small enough to fit on a retail counter or workshop desk. Quiet operation suitable for customer-facing environments.
CNC Precision
Computer-controlled engraving delivers consistent, repeatable results with resolution down to 0.01 mm positioning accuracy.
Dual Engraving Modes
Switch between rotary cutting (material removal) and diamond drag (surface scratching) for different effects and materials.
Cylindrical Engraving
Built-in support for cylindrical items from 12.5 mm to 27 mm diameter — rings, bangles, pen barrels, and small bottles.
Multi-Material Versatility
Engrave on plastics, metals, glass, wood, and organic materials with appropriate tooling and settings.
Easy Software Integration
Compatible with Gravostyle (advanced) and ABC (simple 3-step) software for operators of all skill levels.
MATERIAL COMPATIBILITY
Engraving Plastics
ABS and acrylic laminates in 80+ color combinations, ideal for badges, signage, and labels.
Metals
Brass, aluminum, stainless steel, and anodized aluminum for nameplates, jewelry, and industrial tags.
Glass & Crystal
Diamond-drag engraving on flat and slightly curved glass surfaces for decorative personalization.
Wood & Organic Materials
Hardwood blanks, leather surfaces, and other organic substrates for gifts and decorative items.
APPLICATIONS
Luxury Retail Personalization
Engrave perfume caps, leather goods, jewelry, and accessories in-store while customers wait.
Jewelry Workshop
Inside ring engraving, pendant personalization, and small component marking for jewelers.
Corporate Gifts
Personalize pens, keychains, USB drives, and small corporate gift items with names and logos.
Small Format Signage
Produce desk nameplates, door signs, and small directional signage for offices and hotels.
PERFECT FOR THESE INDUSTRIES
WHY CHOOSE SOFRAY EMS
Industry-leading compact engraver trusted by luxury brands worldwide including Cartier, Tiffany, and Montblanc
Dual rotary and diamond-drag capability eliminates the need for two separate machines
Cylindrical engraving capability built-in — no expensive add-ons required
Quiet enough for front-of-house retail operation where customers can watch their items being personalized
Full SOFRAY EMS support across the GCC: installation, training, maintenance, and consumables delivery
TECHNICAL DETAILS
The M20 X measures 375 x 550 x 408 mm and weighs 12.9 kg. Its 30W spindle operates from 4 to 19,200 rpm with X, Y, and Z axes equipped with ball screws for consistent accuracy. The 7-inch touchscreen provides step-by-step guidance with Point & Shoot precision positioning. Built-in connectivity includes Wi-Fi, USB, and Ethernet for seamless integration with computers and tablets. The marking area covers 100 x 100 mm with maximum object height of 100 mm and diameter capacity from 12.5 to 27 mm. More than 25 compatible jigs are available. Options include a cutting table and Gravogrip table. Compatible with Gravostyle, ABC, and Product Catalog Software via Bluetooth tablet.
FREQUENTLY ASKED QUESTIONS
Can the M20 engrave inside rings?
Yes. With the cylindrical attachment, the M20 can engrave inside rings from 12.5 mm to 27 mm diameter. This is one of its most popular applications in the jewelry industry.
How noisy is the M20 during operation?
The M20 operates at a quiet level suitable for retail environments. Customers can comfortably stand nearby while watching their items being personalized.
What software does the M20 use?
The M20 is compatible with Gravostyle (full CAD/CAM for advanced users) and ABC (simplified 3-step software for beginners). Both run on Windows 10/11.
Can it engrave Arabic and other non-Latin scripts?
Yes. Both Gravostyle and ABC support Unicode text including Arabic, Hindi, Chinese, and other scripts. Simply type or paste your text and the software handles the rest.
What is the difference between the M20 and M20 X Jewel?
The M20 X Jewel is a specialized version optimized specifically for the jewelry market with enhanced cylindrical fixturing and jewelry-specific accessories included in the package.
Ready to Get Started?
Contact SOFRAY EMS for a personalized quote, live demonstration, or sample marking on your materials.
